Why Diesel Engines Depend on AdBlue – SCR, NOx, and System Stability Explained

By Lucas8283 March 5th, 2026 115 views

Truck rolls in. No smoke. No drivability complaint.
Dash reads: “Engine restart not possible in 600 km.”
That’s not a fuel problem. That’s SCR.
Let’s talk about what AdBlue really does — and why modern diesel engines cannot operate without it.

The Real Issue – Diesel Combustion Creates NOx

Diesel engines run lean and hot. That’s why they make torque. That’s also why they create nitrogen oxides.
Inside the combustion chamber, high temperature and excess oxygen allow nitrogen to react with oxygen. The result is NOx formation.
NOx isn’t soot. The DPF can’t trap it. It passes straight through unless something neutralizes it downstream.
Euro 6 regulations forced manufacturers to reduce NOx emissions dramatically — down to 0.08 g/km for light-duty diesel vehicles.
There’s only one reliable way to hit that number without strangling the engine. Selective Catalytic Reduction.

What AdBlue Actually Is

AdBlue — also called Diesel Exhaust Fluid (DEF) — is not a fuel additive. It never enters the engine.
It is a mixture of 32.5% high-purity automotive-grade urea and 67.5% demineralized water.
That 32.5% concentration isn’t random. It provides the optimal freeze point at −11°C and ensures correct ammonia generation inside the SCR catalyst.
Anything outside spec — concentration drift or contamination — will trigger efficiency codes.

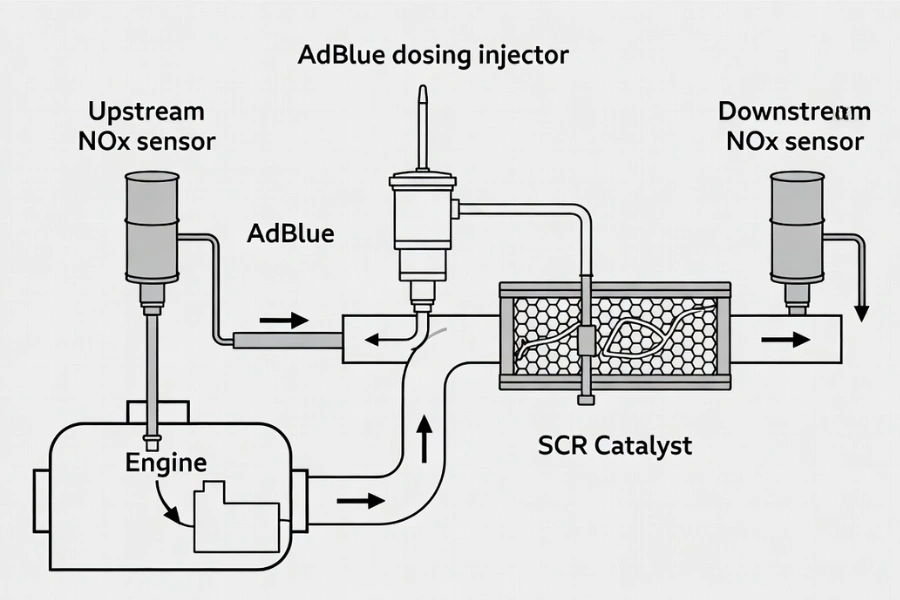

How SCR and AdBlue Work Together

Here’s what happens during normal operation.

Diesel combustion produces NOx.
Upstream NOx sensor measures exhaust levels.
ECU calculates required DEF dosing.
Dosing injector sprays AdBlue into hot exhaust.
Heat decomposes urea into ammonia (NH3).
Ammonia reacts with NOx inside the SCR catalyst.
Output becomes nitrogen (N2) and water (H2O).

Reduction efficiency can exceed 90% under correct operating conditions.

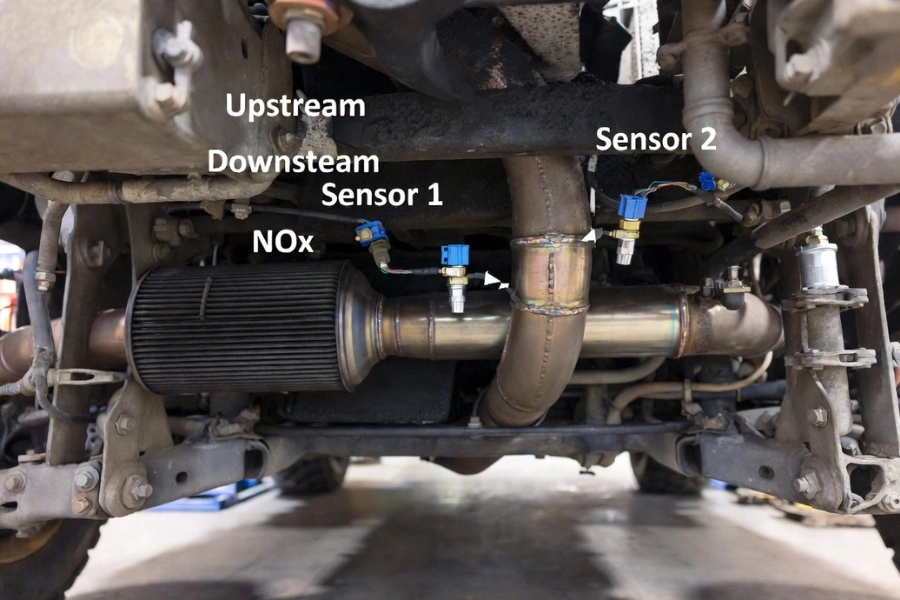

Modern systems use upstream and downstream NOx sensors, exhaust temperature sensors, and closed-loop control logic.
If downstream NOx remains too high, the ECU flags SCR efficiency faults.
Common code example: P20EE – SCR NOx Catalyst Efficiency Below Threshold.
That’s when the real diagnostics begin.

Why It’s Needed – Because the ECU Will Enforce It

SCR isn’t optional equipment.
Without DEF, the ECU limits torque, restricts speed, activates restart lockout, and fails OBD monitors.
Manufacturers build compliance strategies into software. The system protects emissions certification — not convenience.

Real-World SCR Failure Scenarios

Crystallization and Injector Blockage

Low-quality DEF, repeated short trips, or low exhaust temperatures allow urea to crystallize at the injector tip.
Spray pattern degrades. Ammonia distribution becomes uneven. SCR efficiency drops.
Solution is to inspect the injector, verify exhaust temperature data, and evaluate operating patterns.

DEF Contamination

One drop of diesel in the DEF tank contaminates the system.
That leads to pump damage, line degradation, and possible catalyst poisoning.
System flushing may be required. This is not a minor repair.

Heater Failure in Cold Weather

AdBlue freezes at −11°C. Tanks include heaters, level sensors, and temperature monitoring.
If the heater fails, fluid freezes and dosing stops. Fault codes follow.
Winter heater failures are common fleet callbacks.

NOx Sensor Drift

NOx sensors operate in extreme heat. Over time, heater circuits fail and accuracy drifts.
The ECU may overcompensate dosing. You’ll see increased DEF consumption or repeated efficiency codes.
Always verify live data before replacing a catalyst.

Heavy-Duty and Fleet Perspective

Passenger vehicles consume roughly 0.7–2.0 L per 1,000 km.
Heavy-duty trucks often consume 3–5% of diesel fuel usage depending on load.
Higher load equals higher NOx production, which means higher DEF consumption.

Fleet operators focus on uptime and predictable maintenance.
Voltage instability or mechanical irregularities can trigger false diagnostics.
If belt-driven systems slip, alternator output fluctuates.
Unstable voltage affects dosing pumps, sensors, and ECU control stability.

That’s why manufacturers like Suzhou Jiuneng Automotive Technology Co., Ltd., operating globally under SUMATE, focus on durable belt tensioner systems for trucks, buses, and construction machinery. Stable accessory drive systems help maintain consistent charging performance — and consistent charging protects sensitive emissions control modules.
SCR reliability depends on system stability.

What Happens If You Ignore DEF Warnings

The escalation sequence typically follows:

Warning light
Distance countdown
Power derate
Restart disabled

Running dry won’t damage combustion components, but it will park the vehicle.
In fleet operations, downtime costs far more than DEF.

Storage and Handling Best Practices

DEF quality directly impacts SCR life.
Store below 30°C. Avoid metal contact. Keep containers sealed. Use ISO-certified DEF. Never mix fluids.
Hydrolysis accelerates above 30°C. Contaminated DEF shortens catalyst life.

The Bigger Mechanical Picture

AdBlue exists because diesel engines are efficient but chemically aggressive.
SCR allows manufacturers to maintain torque and fuel efficiency while meeting emissions standards.
But the SCR system is only as reliable as the mechanical and electrical systems supporting it.

Stable charging systems, accurate sensors, clean dosing hardware, and proper exhaust temperature all matter.
Diagnostic tools help. Live data confirms it.
But experienced technicians — and durable components — keep SCR systems compliant and fleets moving.
That’s the difference between clearing a code and fixing the root cause.
