Why Are My Brakes Overheating?

You pull a truck into the bay. The front wheels radiate heat. Rotor faces are tinted blue. The customer says the pedal felt firm — but the stopping distance kept growing.

That’s not just “hot brakes.”
That’s a heat management failure.

Brakes are designed to generate heat. Overheating happens when heat input exceeds the system’s ability to absorb and release it. When that balance breaks, friction falls apart.

How Hot Is Too Hot?

Under normal street driving:

• Rotor surface temps typically run 150–400°F

• Aggressive stops can spike temps to 600–800°F

• Above 900°F, most street pad compounds begin to fade

• DOT 3 fluid wet boiling point can drop below 300°F if contaminated

Those numbers matter. Once you exceed the friction compound’s thermal window, stopping power declines even if the pedal feels normal.

Heat Is Normal — Losing Stopping Power Is Not

Every stop converts motion into heat. That’s physics. The problem starts when the system can’t manage that heat.

Mechanical Fade — Friction Breakdown

When pad surface temperature exceeds its designed range:

• Resin outgasses

• Transfer layer destabilizes

• Coefficient of friction drops

Pedal feels firm. Car doesn’t slow the way it should.

That’s classic downhill fade.

Hydraulic Fade — Fluid Boiling

Brake fluid absorbs moisture. Wet boiling points fall over time.

When fluid temperature rises:

• Vapor pockets form

• Vapor compresses

• Pedal goes soft

Long pedal travel is hydraulic.
Long stopping distance with a firm pedal is mechanical.

Misdiagnosing this leads to unnecessary parts replacement.

The Real Causes We See in the Bay

Overheating rarely starts with driving alone. Most of the time, something is already compromised.

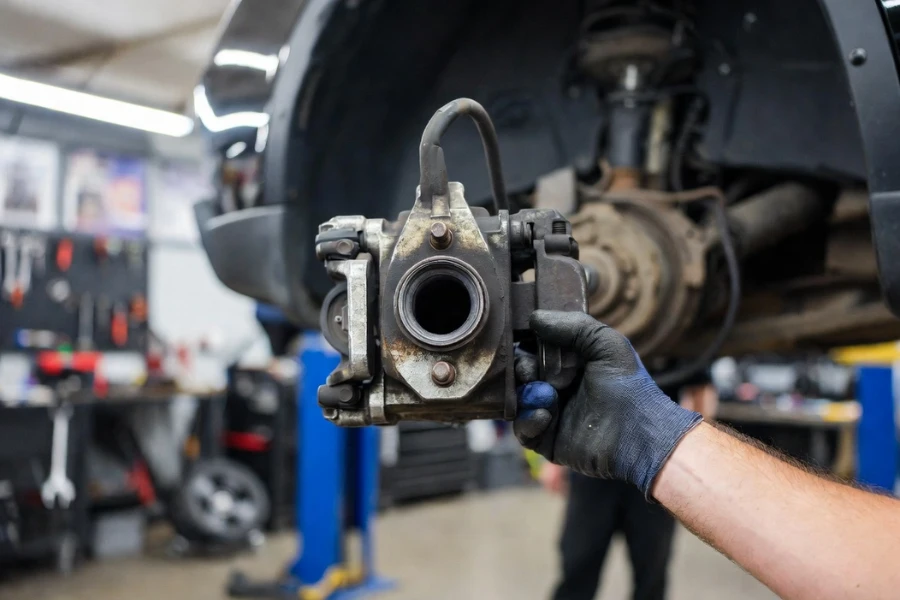

The Caliper That Doesn’t Fully Release

Vehicle sits overnight. Short drive. One rotor already hot.

Common root causes:

• Corroded slide pins

• Dry hardware

• Piston seal swelling

• Brake hose inner liner collapse creating one-way pressure

The pad drags constantly. Heat never resets.

Consequences:

• Uneven rotor thickness variation

• Hot spotting

• Premature bearing stress

• ABS wheel speed sensor heat exposure

Drag is silent. But it cooks parts.

Thin Rotors — Less Metal, More Heat

Rotor thickness equals heat capacity.

As rotors wear:

• Thermal mass drops

• Saturation happens faster

• Surface temps spike quicker

Below minimum spec, rotors lose their ability to buffer energy. Heat rises faster with every stop.

Replacing pads without checking rotor thickness invites repeat fade.

Heat Stacking in Stop-and-Go Traffic

City fleets see this constantly.

Repeated moderate braking:

• No airflow at low speed

• Limited cooling between stops

• Heat accumulates

This is why buses and delivery trucks show more frequent front rotor distortion.

Heat stacking isn’t dramatic. It’s cumulative.

Low-Grade Friction Material

Cheap pads often have unstable friction curves.

As temperature climbs:

• Friction coefficient drops rapidly

• Surface glazes

• Noise increases

High-quality compounds maintain more consistent friction across temperature bands. That’s material science, not marketing.

Old Brake Fluid — The Hidden Problem

Fluid absorbs moisture through:

• Rubber hoses

• Reservoir venting

Wet boiling point drops dramatically over time.

At high temps:

• Vapor compressibility reduces hydraulic efficiency

• Pedal travel increases

• Brake pressure modulation becomes inconsistent

A fluid flush restores system stability. Ignoring it increases fade risk under load.

How We Actually Diagnose Overheated Brakes

Don’t just replace parts. Analyze the system.

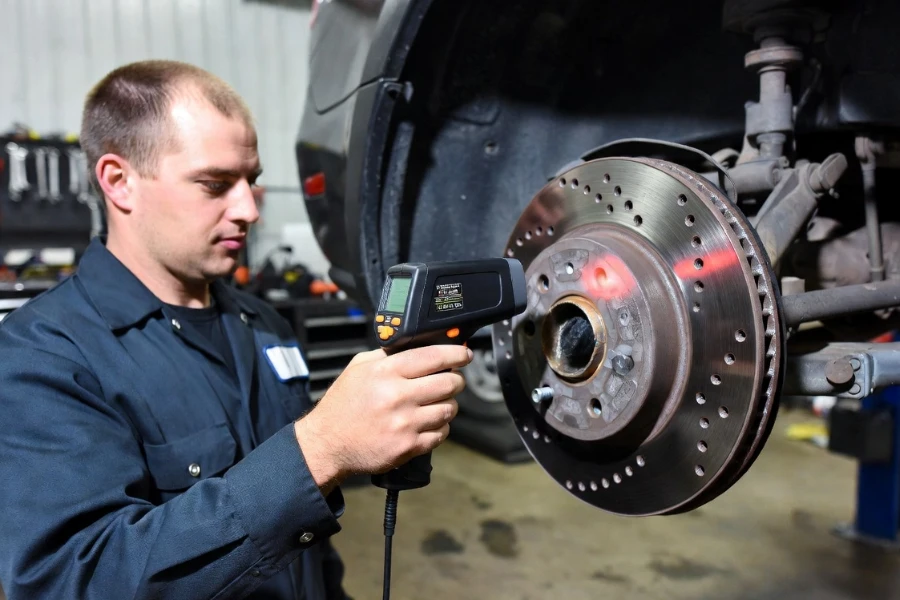

1. Measure rotor temperature variance

• Use an infrared thermometer

• Compare left to right

More than 15–20% difference suggests drag.

2. Check rotor runout and thickness variation

• Excessive runout causes uneven pad contact

• Uneven contact generates localized hot spots

3. Crack the bleeder test

• Wheel frees immediately?

• Suspect trapped residual pressure or hose restriction

4. Inspect pad transfer layer

• Uneven gray film indicates heat imbalance

• Patchy surface suggests hot spotting

5. Evaluate wheel bearings
Overheated hubs transfer heat back into the rotor. Bearing preload or lubrication failure can compound the problem.

Always diagnose the cause, not just the symptom.

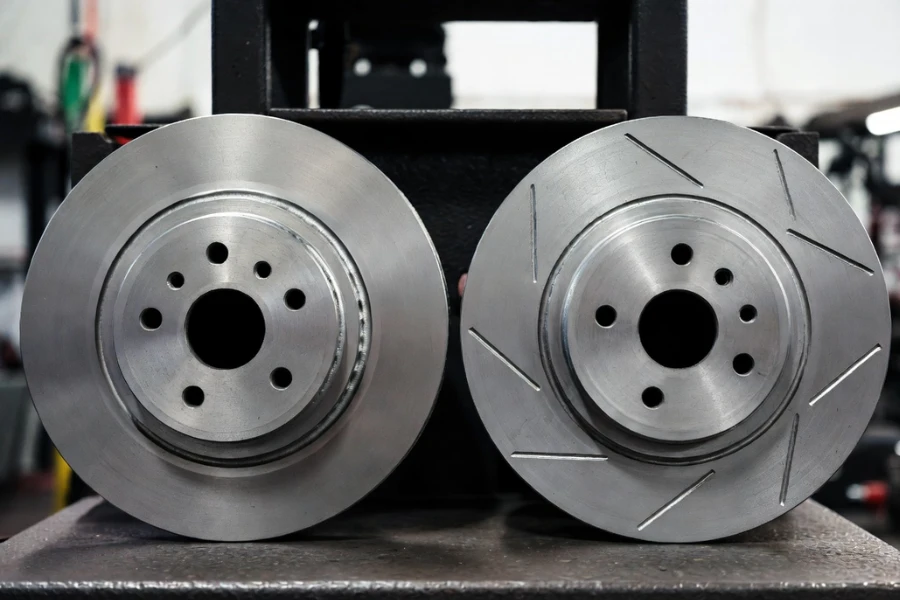

Why Some Rotors Run Cooler Than Others

Not all rotors manage heat equally.

• Solid rotors — lower cooling efficiency

• Vented rotors — internal vanes increase airflow

• Directional vane designs improve cooling under motion

Thermal mass and airflow determine how quickly heat is absorbed and expelled.

Cross-drilled rotors improve gas evacuation but may crack under repeated extreme heat cycles in heavy-duty use. Application matters more than appearance.

How to Stop Overheating Before It Starts

System-based prevention works best.

• Replace pads and rotors together when needed

• Service slide pins every brake job

• Flush brake fluid per interval

• Match friction material to vehicle duty cycle

• Avoid mixing low-grade parts in one system

Fleet managers understand this. Consistency prevents comebacks.

Reliable component sourcing matters. For distributors and fleet operators, manufacturers like SUMATE focus on durable, application-specific components for commercial and passenger vehicles, helping maintain consistent performance across high-mileage platforms.

Quality parts don’t override physics. They ensure the system works within its design limits.

What Happens If You Ignore It

Ignoring overheating leads to:

• Permanent rotor warping

• Pad delamination

• Fluid breakdown

• Increased stopping distance

• Potential brake failure under repeated load

Heat weakens materials gradually before failure becomes obvious.

Most brake failures start as minor heat mismanagement.

Final Word From the Bay

Overheating isn’t about one hard stop.

It’s about imbalance — friction, thermal mass, airflow, hydraulic stability, and release.

Heat is part of braking. Drag is not.

Tools assist. Quality components matter. But skilled technicians prevent repeat failures by understanding how energy moves through the system.

Fix the heat source. Not just the symptom.
