The Cold Morning That Shows You the Truth

Cold start. Truck’s been sitting overnight. Driver says the front feels loose and it’s leaning slightly left.

You measure ride height. One side is down 17 mm. No obvious broken coil at first glance. But under load, the spring compresses deeper than it should.

Springs rarely fail overnight. They lose rate, lose height, and lose control long before they snap.

The real question isn’t “Is it broken?” It’s has it lost the strength to maintain geometry?

What Springs Really Control on the Road

A spring does more than soften bumps.

It carries static vehicle weight, sets ride height and suspension geometry, controls weight transfer during braking and cornering, and defines suspension natural frequency.

Shocks manage motion. Springs define position.

When spring rate drops, geometry shifts. And when geometry shifts, the entire suspension system adapts — usually in the wrong direction.

How Springs Wear Out — Before They Snap

Springs don’t suddenly go bad. They degrade through fatigue and corrosion.

Load Cycles Add Up

Every pothole is a compression cycle. Every corner adds lateral load.

Over 120,000–180,000 km, that becomes millions of stress cycles.

Micro-cracks form in the steel. Effective spring rate decreases. Free length shortens. Static ride height drops.

The vehicle now runs deeper in the compression range. Dampers work harder. Alignment angles drift.

That’s fatigue in action.

When Spring Rate Drops — And You Don’t See It

Spring rate is the force required per millimeter of compression.

As fatigue progresses, stiffness drops gradually. Body roll increases. Nose dive worsens. Weight transfer becomes exaggerated.

You won’t see a break. But you’ll feel instability.

Experienced technicians replace springs when rate loss affects geometry — not just when the coil snaps.

How Rust Turns Into a Broken Coil

In salt-belt regions, corrosion does the damage quietly.

Protective coating chips. Rust creeps under paint. Pitting forms on the lower coil. Stress concentrates at the pit. Crack initiates under compression.

Most breaks happen at the bottom coil where debris and moisture collect.

You lift the vehicle and find the broken segment sitting in the lower seat. Sometimes already rubbing the tire.

That’s daily shop reality.

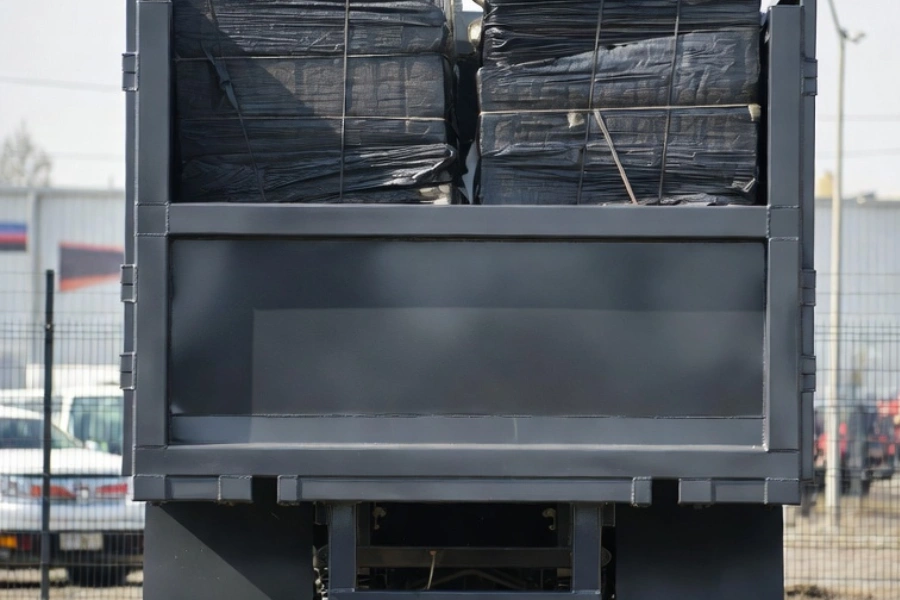

Why Fleet Vehicles Burn Through Springs Faster

Fleet trucks, buses, and commercial vehicles live under constant load.

Higher static compression means the spring operates closer to its stress limit all the time.

Under heavy-duty use, fatigue threshold arrives sooner. Rate degradation accelerates. Preventive replacement becomes economical.

Downtime costs more than parts.

When Should You Replace Suspension Springs?

Not based on guesswork. Based on measurable change.

Level 1 – Functional Wear

Replace when ride height drops 10–20 mm side-to-side, alignment repeatedly drifts out of spec, or body roll increases despite good dampers.

Most OEM ride height tolerance is within ±5 mm. Beyond that, geometry shifts.

Level 2 – Structural Risk

Replace when you see heavy corrosion scaling, deep pitting at load-bearing areas, or coating failure exposing raw steel.

Corrosion shortens fatigue life dramatically. Once pitting starts, failure is only a matter of time.

Level 3 – Mechanical Failure

Immediate replacement if the coil is cracked or snapped, a segment has shifted position, or tire contact risk exists.

A broken coil under compression can cut a sidewall. That turns a suspension issue into a roadside problem.

What Happens If You Keep Driving?

You can drive with a weakened spring.

But understand the consequences.

Increased braking distance due to poor weight transfer. ABS and stability control reacting to unstable load distribution. Uneven camber increasing tire wear. Additional stress on wheel bearings and bushings.

If spring rate drops 15 percent, damper piston velocity increases. Seal wear accelerates. Heat builds faster.

Weak springs overload good shocks.

What a Weak Spring Does to the Rest of the Suspension

A fatigued spring changes the suspension’s natural frequency.

That affects tire contact patch stability, steering feedback, wheel hop under acceleration, and ride harshness over expansion joints.

Suspension isn’t isolated components. It’s a system.

Evaluate together spring condition, damper performance, mount integrity, control arm bushings, and alignment angles.

Replacing dampers without addressing weakened springs restores only half the system.

When Preventive Replacement Makes More Sense Than Waiting

Not every spring fails dramatically.

Sometimes you see noticeable ride height drop, high mileage under constant load, corrosion scaling before winter, or repeated alignment issues.

For fleet operators, inspect springs every 80,000–100,000 km. Compare ride height across similar units. Consider preventive replacement at 150,000–200,000 km in heavy service.

Waiting for a snap isn’t strategy. It’s risk.

Preventive replacement reduces downtime and repeat repairs.

Why Material Quality Determines How Long a Spring Survives

Fatigue resistance depends on steel consistency, heat treatment precision, surface finish quality, and corrosion protection.

Inconsistent metallurgy shortens service life under cyclic load.

These durability principles apply across critical automotive components — from suspension springs to belt drive systems and tensioner assemblies manufactured by experienced suppliers like SUMATE.

Durability isn’t hype. It’s controlled manufacturing and consistent material behavior under stress.

Replace Before It Starts Wearing Everything Else Out

A suspension spring doesn’t just hold weight.

It defines ride height. It defines alignment geometry. It controls how weight transfers under braking and turning.

When spring rate drops, the entire system compensates — and that compensation increases wear elsewhere.

Experienced technicians don’t wait for a dramatic snap.

They measure. They compare. They inspect corrosion. They understand load cycles.

Tools assist. Data confirms.

But skilled judgment — backed by reliable components — prevents failures before they become comebacks.
