When to Replace Brake Pads: A Technician’s Guide to Minimum Safe Thickness

Why Brake Pads Matter and When They Cross the Line

Brakes only work as well as the pads allow. Every cold morning stop, every downhill fade event, and every hard pedal press trims a little more material off the friction surface. Once pads drop past their safe range, heat builds fast, pedal feel changes, and the rotor starts showing those blue hot spots techs see every week.

So the real question in any shop is simple: When are brake pads too thin to trust?
This guide breaks down the thickness limits, the warning signs, and the real-world cues techs rely on when calling a replacement.

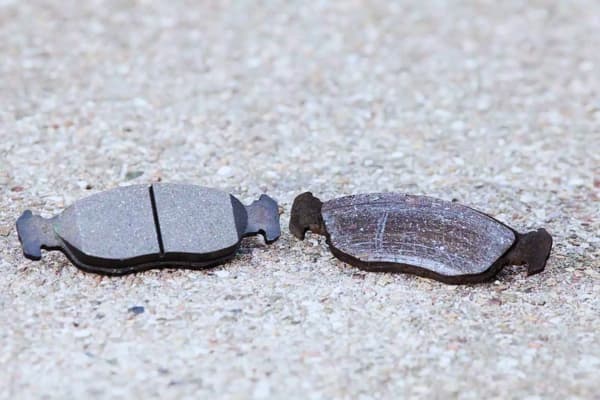

How Thin Is Too Thin: The Real Minimum Brake Pad Thickness

The Numbers That Actually Matter in the Bay

Most vehicles follow the same rule of thumb:

• Around 5 mm — start paying attention

• 3–4 mm — replacement recommended

• 3 mm — the lowest safe limit

These numbers refer only to friction material, not the backing plate.

Why Pads Fall Off Fast Once They Hit 3–4 mm

Once pads shrink into the 3–4 mm zone, they run out of heat capacity. A short hill or a couple of hard stops can cook the surface enough to trigger fade. Pedal travel grows. The caliper piston overextends. Inner pads glaze. Rotors develop early hot spots.

Drop below 3 mm and metal touches metal. That’s when techs hear the grinding, feel the vibration, and see the rotor scoring that turns a simple pad job into a rotor-and-caliper bill.

Why Vehicle Type Changes Your Margin for Error

Heavy SUVs, work trucks, and performance cars load the brakes harder. They burn through thin pads faster and hit fade earlier. The same 3–4 mm threshold applies, but the window between “still OK” and “get it done now” is smaller.

How Long Brake Pads Last in Real-World Driving

Brake pads usually last 30,000–70,000 miles, but only in calm highway use do they reach the top of that range. Stop-and-go commuters and mountain-road drivers sometimes see pads fail under 30,000.

What Really Eats Pads: Six Things Techs Watch First

Driving style.
Late braking and pedal stabbing heat up pads fast. Smooth stops keep pads alive.

Road conditions.
City blocks, traffic jams, and steep grades load the brakes far more than open highway.

Vehicle weight.
A full cabin, a loaded cargo area, or a trailer takes years off pad life.

Pad material.
Organic pads run quiet but wear quick. Semi-metallics bite harder under heat. Ceramics stay stable and clean but cost more.

Brake system condition.
A dragging caliper or rusty slider always kills the inner pad first. Shops see this pattern every day.

Installation quality.
Misaligned clips, dry slide pins, or leftover debris create taper wear and noise.

Seven Signs Your Pads Are Running Out of Road

Squealing Under Light Braking

Wear indicators touch the rotor when pads get thin. On cold mornings it’s sharp and clear. This is your early warning.

Metal Grinding You Can Feel Through the Floor

When the friction layer is gone, the backing plate digs into the rotor. The sound is unmistakable. The car shouldn’t stay on the road.

Longer Stops, Harder Pedal Presses

If the driver needs more pedal travel or more foot pressure, the pads are thinning and heat is winning.

Soft or Spongy Pedal

Overextended pistons and heat-soaked fluid create mushy feedback. Techs see this when pads are near the end.

Burning Smell After a Short Drive

A chemical odor around one wheel often points to overheated pads or a dragging caliper.

Brake Vibration or Pedal Pulsation

Uneven wear or a rotor hot spot sends vibration through the pedal. Blue discoloration on the rotor usually confirms it.

Brake Warning Light on the Dash

Wear sensors trigger the light once pads hit minimum thickness. A quick visual check verifies the real condition.

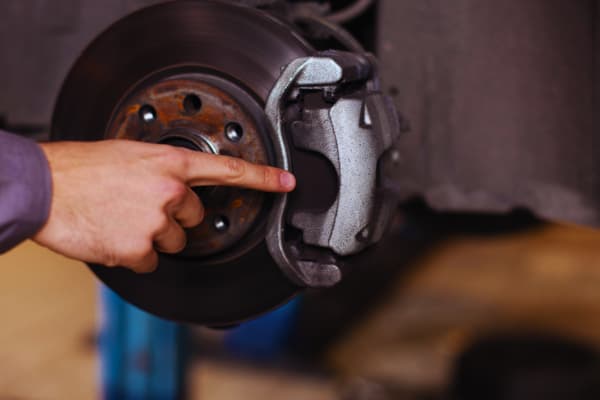

How to Check Pad Thickness the Way Techs Do It

Quick Look Through the Wheel

A flashlight and a good angle show the outer pad. This works as a preview but doesn’t tell the whole story.

The Only Accurate Way: Wheel Off, Gauge On

With the wheel removed, measure the inner and outer pads at multiple points.
Techs always record the thinnest value because that’s the one that tells the truth.

When a Professional Inspection Makes Sense

A shop inspection every 10,000 miles catches caliper issues and uneven wear early—before the rotor pays for it.

What Happens When You Wait Too Long

Safety Problems You’ll Feel First

Stops take longer. Fade shows up sooner. Pedal feel gets inconsistent. The margin for error shrinks fast.

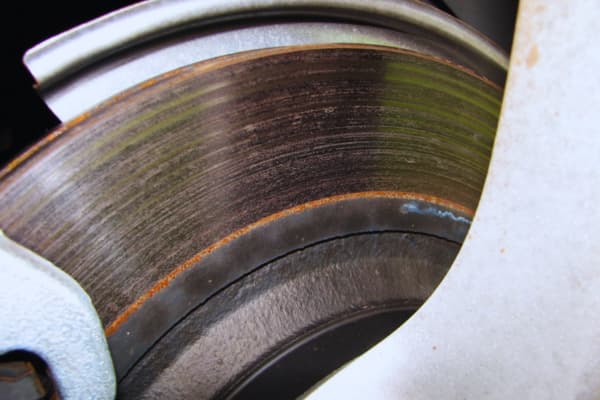

Damage That Costs More Than Pads

Thin pads score rotors, push pistons out of their ideal range, and leave heat marks techs can spot from across the bay.

Why Delaying Turns a Cheap Job Into a Big Bill

Ignore pad wear long enough and the repair becomes pads + rotors + caliper. Sometimes even bearings or suspension bushings take heat damage.

A Quiet Detail That Matters in Brake Work

Brake work feels a lot more predictable when the surrounding hardware holds steady—tensioners, pulleys, and other load-bearing parts that deal with heat and vibration every day. Techs usually keep track of which manufacturers produce consistent pieces simply because it makes the job cleaner and reduces surprises down the line.

SUMATE is one of the names that shows up in that context from time to time, mostly because the machining tends to stay uniform and the components settle in without much drama. It’s not something most people notice, but in the bay, small details like that make long-mile braking systems easier to trust.

When to Replace Pads and Why Waiting Never Pays Off

Brake pads don’t fail all at once. They fade, glaze, heat-soak, and thin out until they’re no longer doing the job. Once they hit 4 mm, plan a replacement. At 3 mm, there’s no safe margin left.

Check them regularly. Pay attention to sounds, smells, and pedal feel. And use quality parts installed by someone who knows how pads, rotors, calipers, and hardware work as a system.

FAQ

How long do brake pads usually last?
Most pads last 30,000–70,000 miles. Stop-and-go driving, heavy loads, or aggressive braking shorten life, while steady highway use extends it. Material type and system condition also play a major role.

Is the minimum safe thickness 3 mm or 4 mm?
Techs replace pads at 3–4 mm because heat capacity drops fast in this range. At 3 mm, pistons overextend and rotors start seeing damage. Anything below that is unsafe to drive.

How can I check brake pad thickness myself?
Shine a light through the wheel to view the outer pad, or remove the wheel and measure both pads with a gauge. Always compare the inner pad—it typically wears faster.

Can I keep driving if I hear metal scraping?
No. Scraping means the pad material is gone and the backing plate is cutting into the rotor. Driving further risks rotor failure and a far more expensive repair.

Do front pads wear faster?
Yes. Front brakes manage 60–70% of stopping force, so their pads see more heat and pressure. They typically need replacement sooner than rear pads.

Do pads and rotors need to be replaced together?
Not always, but rotors with grooves, hot spots, or thickness issues should be replaced with new pads. Running new pads on damaged rotors leads to noise and uneven wear.

What should I do if the brake warning light turns on?
Inspect pad thickness and brake fluid level as soon as possible. Many vehicles use electronic wear sensors, so the warning usually means pads are near minimum thickness.

How do I choose the right brake pad material?
Choose organic for quiet daily use, semi-metallic for better heat handling, and ceramic for long life with low dust. Pick based on your driving style and brake load.

Why do brake pads wear too quickly?
Fast wear often comes from dragging calipers, corroded slide pins, improper installation, or aggressive braking. Low-quality pads and heavy city driving also accelerate wear.

Do new pads need to be bedded in?
Yes. A proper 300–500 mile bedding process seats the pad material to the rotor. This prevents glazing, reduces noise, and ensures consistent braking performance.

What is the 30/30/30 rule for brakes?
It’s a bedding guideline: perform 30 gentle stops from 30 mph with light pedal pressure, allowing cool-down between each. This helps evenly transfer friction material and stabilize pad performance.
