The Ultimate Guide to Cleaning and Maintaining an EGR Valve

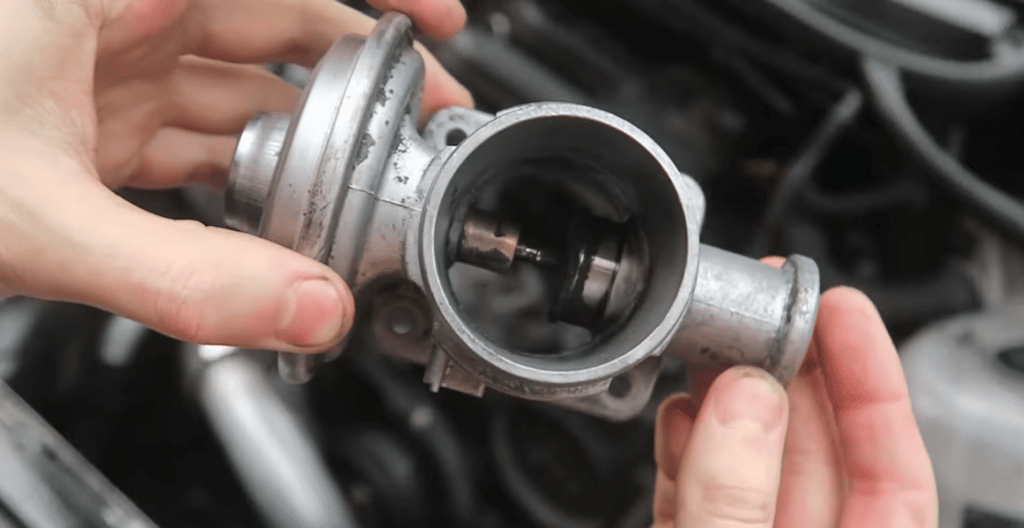

Why EGR Valves Load Up — And How the Trouble Starts

Every shop sees the same pattern. A customer comes in with a stumble on decel or a Check Engine Light that won’t stay off. Idle hunts. Power drops. Fuel economy slips. On diesel engines, the exhaust may haze black under load.

When you pull data, the ECU usually flags low EGR flow or irregular valve movement. And the reason is almost always the same:
carbon has loaded the valve until it sticks, slows, or stops sealing.

EGR valves live in a harsh path. Hot exhaust carries soot, vaporized oil, and fine particulates straight across the pintle and ports. Once carbon layers build, the valve stops tracking commands cleanly. Flow drops. The ECU compensates. Drivability suffers.

At that point, a proper cleaning isn’t optional—it’s the only way to restore normal flow before the restriction causes comebacks.

How Technicians Clean EGR Valves — From Light Maintenance to Full Tear-Down

Shops don’t use one method. Techs match cleaning approaches to the condition of the system.
Below is a technician-style breakdown of what works, when to use it, and why.

1. Light Cleaning: When the Valve Still Moves and Only Early Carbon Shows Up

This level works when the valve isn’t sticking yet—just showing early deposits that thicken flow paths.

Fuel Additives: Slow, Steady, Preventive

Good for engines that carbon up fast or run constant short trips.

Techs use them when:

• The engine hesitates lightly

• Early smoke appears

• Flow seems borderline but not restricted

Useful every 10,000–15,000 km as preventive care.
Not a fix for a jammed valve, and some diesel systems with DPF/FAP react more sensitively, so match the chemistry to the engine.

High-RPM Highway Burn: Clearing Soft Carbon

Engines that rarely get hot enough tend to load carbon early. A sustained highway run at 2,000–3,000 rpm helps raise exhaust temps and burn off soft deposits.

This doesn’t free a binding pintle, but it keeps lightly used systems from clogging prematurely.

2. Deep Cleaning: When Carbon Has Thickened and Flow Drops Hard

Once deposits bind the pintle or choke the ports, the only reliable fix is a full valve removal and bench cleaning.

Step 1: Pulling the Valve

Techs look for:

• Tight access near the intake or exhaust junction

• Fragile connectors

• Old vacuum lines that crack when moved

The goal is simple—remove the valve without stressing wiring or fittings that create more issues later.

Step 2: Clearing Carbon the Technician Way

Inside an EGR valve, carbon doesn’t build evenly. It layers, hardens, and distorts flow. A proper shop cleaning blends solvents with controlled mechanical work.

Tools that actually get results:

• Carb/brake cleaners

• Citrus or heavy-duty soaking sprays

• Small screwdrivers, picks, brushes, pipe cleaners, steel wire

• Battery terminal brushes for tubes

Techs scrub:

• The pintle seat

• The valve throat

• The ports feeding exhaust or intake passages

For electronic EGR valves, the motor and electronics stay dry—only mechanical surfaces get cleaned.

Step 3: Verify Free Movement

A clean EGR pintle should move smoothly with no hesitation.
If it binds after cleaning, shows heat damage, or feels loose in the guide, replacement is the smarter call. A marginal valve always fails again under heat cycles.

3. Real-World Shop Tricks for Stubborn Carbon

Some jobs need more than solvent and brushes. Experienced techs sometimes rely on:

• Ultrasonic cleaning: great for metal pieces with heavy deposits

• Torch heating: burns carbon off runners before blowing it out (requires judgment)

• Mechanical agitation: shaking hardware inside removed manifolds to knock out baked carbon

These aren’t DIY steps—they’re shop-only methods used to avoid unnecessary replacements.

Putting the System Back Together — And Resetting It the Right Way

Once clean, sealing and reinstallation matter as much as the cleaning itself.

Technicians always:

• Clean gasket surfaces

• Install new gaskets (metal for exhaust side, paper usually on intake/cooler side)

• Torque bolts to spec

• Reconnect vacuum lines and electronics without strain

• Clear codes and reset adaptations if required

A quick leak check and idle stability test confirm whether the system is flowing again.

How to Keep the EGR System Clean Longer

EGR systems clog fast when engines run cold or stay at low load.
To extend valve life and avoid repeat cleanings, techs recommend:

• Avoid constant short-trip driving

• Run steady-load highway cycles occasionally

• Use preventive additives on a schedule

• Service the intake and EGR paths every 20,000–30,000 km

• Keep air and fuel systems clean to reduce soot formation

These habits slow carbon accumulation and cut down on repeat drivability complaints.

Final Takeaway from the Shop Floor

A dirty EGR valve isn’t just a drivability issue—it’s a system restriction that grows until the engine complains loudly. Cleaning restores flow, but prevention and quality components keep problems from returning.

Technicians fix engines; durable parts keep them fixed.
If the EGR system keeps loading up, look deeper at airflow, combustion quality, and component condition—not just the valve itself.

EGR Valve Cleaning FAQ

Q1: How long does an EGR cleaning take?

Most DIY jobs take 1–3 hours depending on engine layout and how buried the valve is. Hard-to-reach units or heavy carbon buildup can extend the time slightly.

Q2: Can I clean my EGR valve myself?

Yes, if you’re comfortable removing basic hardware and handling cleaners. Light buildup is easy to clear. Severe carbon or electronic EGR valves may require professional service.

Q3: How do you know if your EGR valve is clogged?

Common signs include rough idle, weak acceleration, poor fuel economy, black smoke, or a Check Engine Light during decel. These point to restricted EGR flow.

Q4: Should I clean or replace my EGR valve?

If carbon buildup is the only issue, cleaning solves it. Replace the valve if it’s heat-damaged, sticking after cleaning, or failing to respond to ECU commands.

Q5: Why is the Check Engine Light still on after cleaning?

The ECU may need a reset with an OBD-II tool. If the code returns, the issue may involve the solenoid, wiring, or sensors rather than carbon.

Q6: What is the best cleaner for an EGR valve?

Carb cleaner or brake cleaner works for most metal valves. Avoid soaking electronic sections. Heavy carbon may need citrus solvent or stronger intake cleaners.

Q7: Can EGR cleaning improve fuel economy?

Yes. If the valve was restricted and caused poor combustion or incorrect airflow readings, cleaning restores normal performance and fuel efficiency.

Q8: Can I block or delete the EGR system?

It’s illegal in most regions. Deletes trigger emissions failure, warning lights, potential knock, and compliance issues. Not recommended for street vehicles.

Q9: Are all EGR valves cleaned the same way?

Basic principles are similar, but electronic valves require extra care. Mechanical parts can be soaked and scrubbed; electronic housings should never be submerged.
