The Ultimate Crankshaft Guide: What It Is, How It Works, and Why It Matters

1. Introduction: Why the Crankshaft Matters

Most shops hear the same complaints before crankshaft trouble shows itself—vibration at idle, a cold-start knock, or oil pressure that fades once the engine heats up. Those symptoms all point toward the part that carries the entire bottom end on its back: the crankshaft.

If the crankshaft stops turning, the vehicle stops moving. If it wears, bends, or loses lubrication, everything downstream takes the hit. Bearings wash out. Timing drifts. Accessory drive loads surge. The crankshaft is the mechanical link that turns combustion force into rotation you can actually use.

2. What the Crankshaft Is and Where It Came From

Sitting low in the block, the crankshaft is a hardened steel shaft designed to turn straight-line piston movement into rotational torque. The job sounds simple, but in the real world it handles shock loads, thermal expansion, and constant oil film strain.

The name goes back to the hand-crank era. Early engines relied on a manual crank handle to rotate the crankshaft and start combustion. Electric starters took over, but the term remained—and so did the importance of the shaft itself.

3. How the Crankshaft Turns Piston Force Into Rotation

Inside the engine, the crankshaft is always under pressure. Each combustion event drives the piston down. The connecting rod pushes on the crankshaft’s offset rod journals. That offset creates leverage, converting linear force into rotation.

How Power Moves Through the Driveline

Once the crankshaft spins, torque flows through:

• the flywheel or flexplate

• the transmission

• the driveshaft or transaxle

• the drive wheels

Any crank distortion, bearing wear, or imbalance changes how that torque feels—usually as noise, harshness, or vibration under load.

What the Front End Handles

At the crank pulley, rotation drives:

• the alternator

• the A/C compressor

• the power steering pump

• belt-driven accessories

A bent snout, wobbling pulley, or failing harmonic balancer often shows up as belt oscillation, accessory noise, or poor belt tracking.

Timing Coordination

The crankshaft also keeps the entire timing system in sync. A gear or sprocket at the front locks crankshaft and camshaft timing together. If the crank signal drifts—or if the crank moves irregularly due to bearing wear—you’ll see misfires, rough idle, and timing codes.

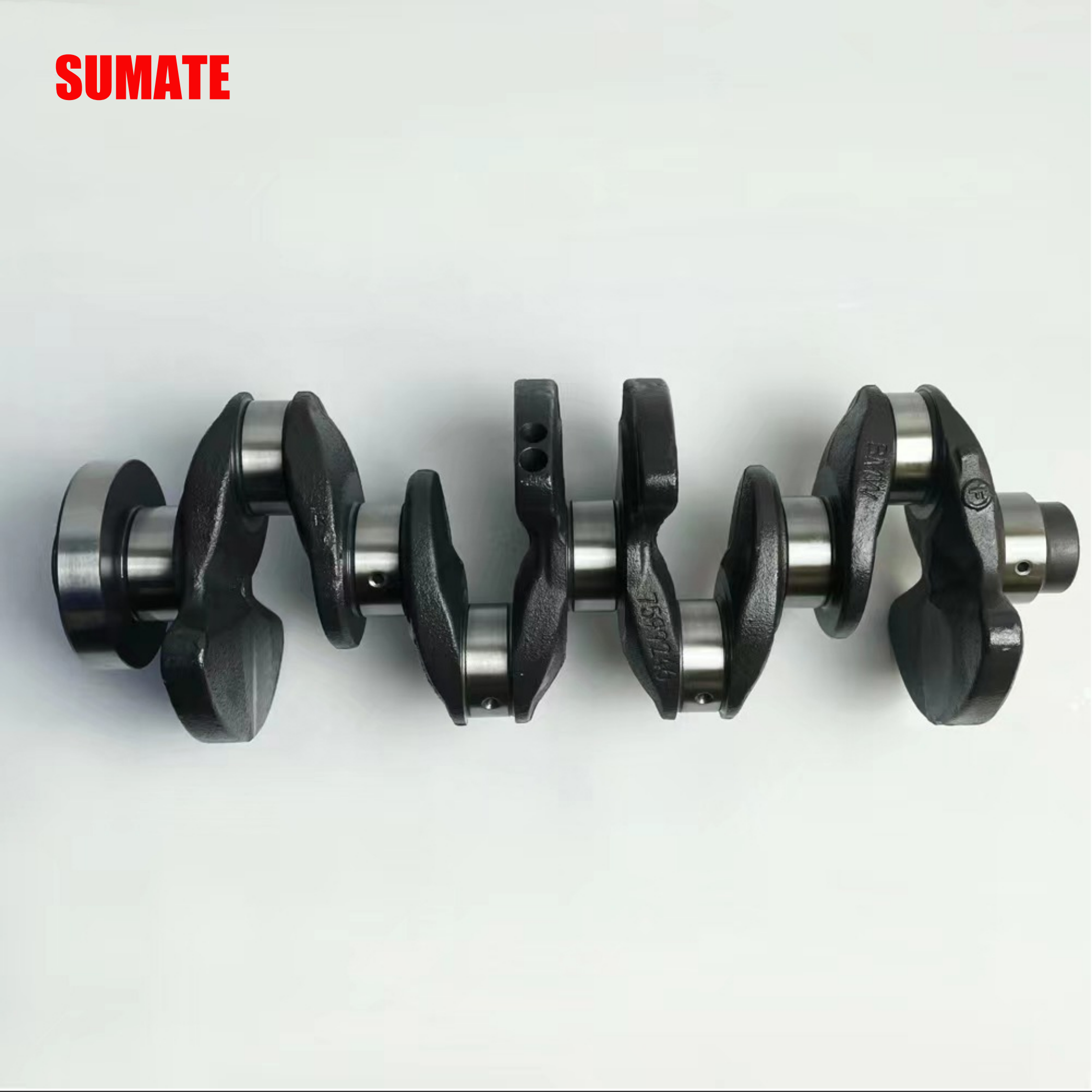

4. Inside the Crankshaft: Key Parts and What They Do

From the outside, a crankshaft looks like a simple rotating shaft. In reality, every surface and counterweight affects balance, oil film stability, and long-term durability.

Main Journals

Support the crankshaft in the block. When oil breaks down or clearance opens up, these journals and their bearings take the first hit.

Rod Journals

Offset journals where connecting rods attach. Their geometry defines stroke and leverage. Wear here shows up as rod knock, metal flake in the oil, and bottom-end failure if ignored.

Crank Arms

Connect main journals to rod journals. Their radius determines stroke length and affects compression and piston speed.

Counterweights

Balance piston and rod movement. Missing mass or damaged weights create vibration that shows up at idle or under acceleration.

Rear Flange

Bolts to the flywheel or flexplate. Any irregularity here leads to starting issues, clutch chatter, or flexplate cracking.

Front Snout

Carries the timing gear and crank pulley. Even slight runout shows up as belt noise, harmonic balancer failure, or accessory drive instability.

5. Common Crankshaft Designs and Where They’re Used

Crankshaft design depends on engine layout and the balance strategy behind it.

Flat-Plane Crankshafts

Used in high-revving performance V8 engines.

• Light

• Fast to accelerate

• Naturally more vibration

Shops usually see these in engines where power outranks NVH.

Cross-Plane Crankshafts

Standard in most V8s.

• Smooth

• Well-balanced

• Heavier

Ideal for trucks and large-displacement engines that prioritize stability.

Inline Engine Crankshafts

Found in I4 and I6 designs.
Simple, reliable, and especially smooth in straight-six configurations.

6. What the Crankshaft Is Made Of and How It’s Built

Crankshafts must survive repeated shock loads, heat cycles, and changes in oil viscosity. Manufacturing and material selection reflect those demands.

Materials

• Forged steel — strongest option for high load and fleet applications

• Ductile cast iron — cost-effective and durable for moderate duty cycles

Why Forging Matters

Forged crankshafts maintain continuous grain flow, resisting twist, bending, and crank walk under heavy load—critical for work trucks, buses, and construction equipment.

Surface Hardening

Journal surfaces are hardened to slow wear. A crankshaft needs a tough core to absorb force and a hardened surface to maintain oil film separation over years of service.

7. Crankshaft Problems: Symptoms You Should Never Ignore

Shops and fleets often catch crankshaft problems early—if they pay attention to the right signals.

Excessive Vibration

A bent crankshaft, worn bearings, or a failed balancer changes vibration patterns, especially at idle.

Knocking or Metallic Noise

Rod or main knock usually means the oil film collapsed and journals are making direct contact.

Misfires or Rough Idle

A drifting crank signal or timing imbalance disrupts combustion.

Hard Starting or No Start

A seized crankshaft or failed crankshaft position sensor prevents the ECU from seeing RPM.

Low Oil Pressure

Worn bearings bleed pressure, often the first visible sign of bottom-end wear.

Oil Leaks

A worn front or rear seal lets oil escape around the crank, usually coating the bellhousing or pulley area.

Once bearing material circulates through the oil, bottom-end damage accelerates fast.

8. Crankshaft Repair and Replacement: What It Really Takes

Replacing or repairing a crankshaft is a major job. Most fleets rely on shops with engine rebuild experience to handle it.

Repair Options

Light wear can sometimes be corrected by grinding journals and installing oversized bearings.

When Replacement Is the Only Option

• Bent crankshaft

• Cracks confirmed during inspection

• Severe scoring on journals

At that point, replacement is more reliable than repair.

Why the Job Takes Time

Replacing a crankshaft requires:

• engine removal in most cases

• full lower-end teardown

• cleaning oil passages

• new bearings and seals

• precise torque and clearances during reassembly

Cost Range

• Crankshaft: $400–$800

• Full repair: $2,000–$2,800 depending on labor and parts

A poorly installed crankshaft leads to bearing wash-out, leaks, and timing faults. This job belongs in the hands of trained technicians.

9. FAQ

Q1: What does a crankshaft do?

A crankshaft turns the pistons’ up-and-down motion into rotation that drives the flywheel, transmission, and wheels. It also powers belt-driven accessories and keeps the timing system in sync.

Q2: Can a car run without a crankshaft?

No. Without the crankshaft converting piston force into rotation, the engine can’t create usable torque. The vehicle will not move and the engine can’t operate.

Q3: What’s the difference between a camshaft and a crankshaft?

The crankshaft drives piston movement and engine rotation. The camshaft controls valve timing. Both stay synchronized through the timing system but handle completely different jobs.

Q4: What causes most crankshaft failures?

Most failures come from poor lubrication—low oil, degraded oil, or restricted oil flow. These conditions wear bearings, increase heat, and eventually damage the crankshaft.

Q5: Does a bad crankshaft sensor mean the crankshaft is bad?

No. The sensor is a separate electronic part. A failed sensor affects starting and timing signals but doesn’t mean the crankshaft itself is damaged.

Q6: How do I tell if my crankshaft is bad?

Watch for heavy vibration, knocking, low oil pressure, metal in the oil, or hard starting. These symptoms point to bearing wear, imbalance, or crankshaft damage.

Q7: How do I extend crankshaft life?

Use quality oil, follow service intervals, and fix low oil pressure or vibration early. Proper lubrication and early intervention prevent most crankshaft and bearing failures.
