BT4E6B209CC Ford Edge Belt Tensioner

Accessory Belt Tensioner Assembly BT4E6B209CC

No.BT4E6B209CC

SUMATE supplies accessory belt tensioner assembly BT4E6B209CC for selected Ford Edge, Explorer, Flex and Taurus applications, with additional Mazda applications listed below. The complete assembly uses a C&U bearing and a steel pulley.

Primary OE reference: BT4E6B209CC
Pulley bore diameter: 17 mm
Pulley outer diameter: 70 mm
Pulley width: 25.5 mm
Bearing: C&U
Pulley material: Steel
Warranty: 1 year
Delivery: 1–7 days, subject to availability and quantity
Packaging: SUMATE / Neutral / Custom
MOQ: Contact us for details
Origin: Zhejiang, China

For a quotation, send reference BT4E6B209CC, quantity and packaging requirements. Include the original-part number, vehicle and engine details when matching assistance is needed.

Description

AUTOMATIC ACCESSORY-BELT TENSIONER

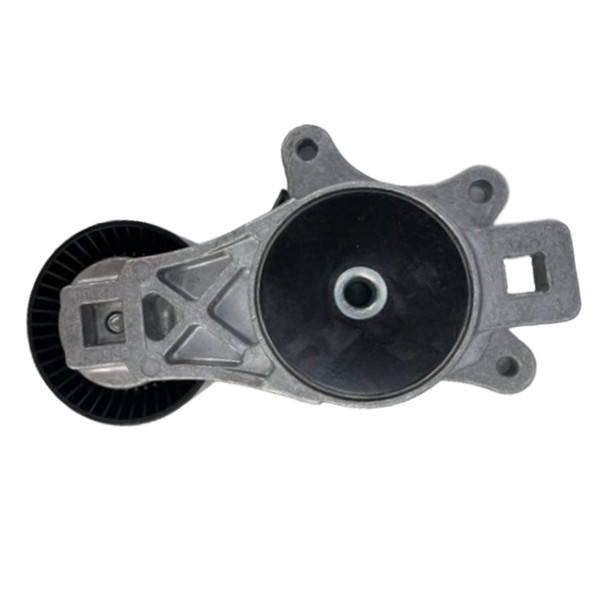

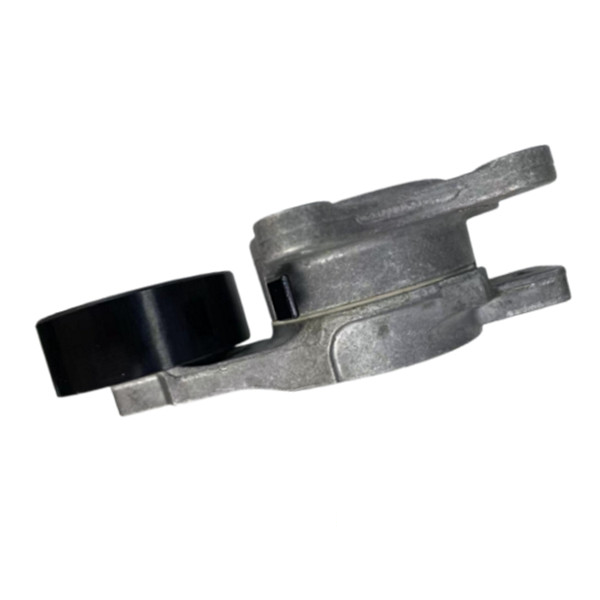

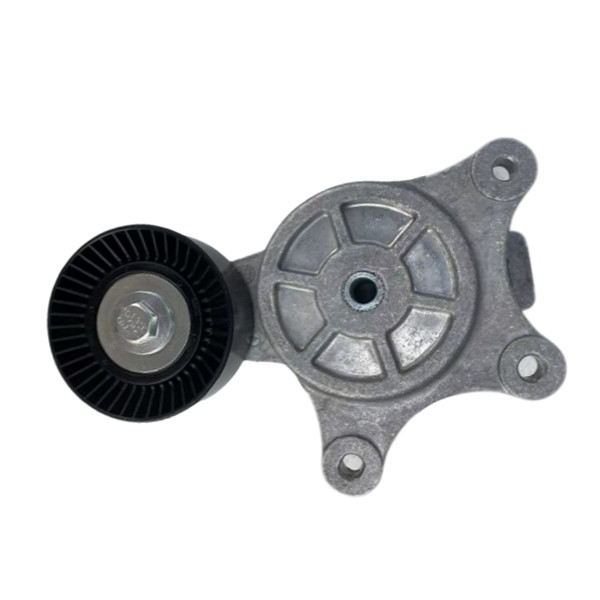

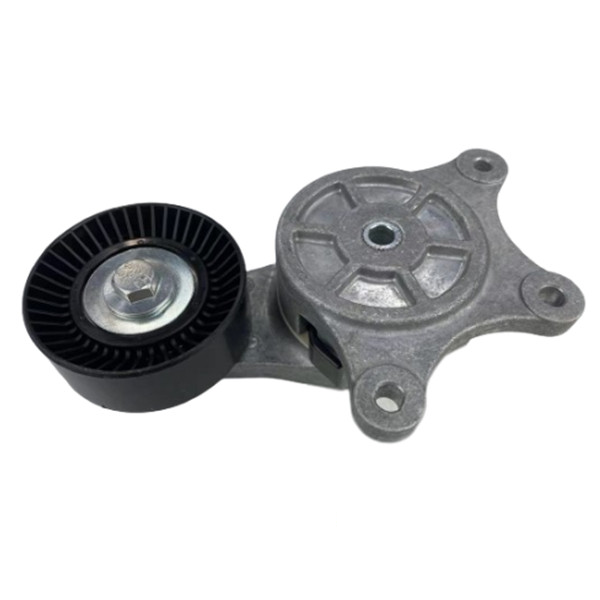

Accessory Belt Tensioner Assembly BT4E6B209CC

SUMATE supplies accessory belt tensioner assembly BT4E6B209CC for selected Ford Edge, Explorer, Flex and Taurus applications. The pulley measures 70 mm in outer diameter and 25.5 mm in width, with a 17 mm bore. Mazda CX-9 application information is included in the table below.

The complete assembly combines the tensioning mechanism, a C&U bearing and a steel pulley for the multi-V / serpentine accessory drive. The product origin is Zhejiang, China.

Technical Specifications

BT4E6B209CC product specifications
SUMATE product number	BT4E6B209CC
Part type	Automatic accessory belt tensioner assembly
Drive system	Multi-V / serpentine accessory-belt drive
Primary OE reference	BT4E6B209CC
Pulley bore diameter	17 mm
Pulley outer diameter	70 mm
Pulley width	25.5 mm
Bearing	C&U bearing
Pulley material	Steel
Origin	Zhejiang, China
Packaging options	SUMATE, neutral or custom packaging
Warranty	1 year
Delivery	1–7 days, subject to availability and quantity
MOQ	Contact us for details

The listed pulley dimensions should be checked alongside mounting points, arm position and offset. Send clear front, rear and mounting-side photos when the original reference is unreadable.

OE & Aftermarket Reference Numbers

Reference numbers for identification and comparison
Reference brand	Reference numbers
Primary OE reference	BT4E6B209CC
Ford	BT4Z6B209B
Ford USA	8T4Z 6B209-A / BT4E6B209CC / BT4Z6B209B
LINCOLN	7T4Z 6B209-AA / 8T4Z 6B209-A / BT4Z 6B209-B
Mazda	CY01-15-980C / CY0115980B / CY0115980D
MERCURY	8T4Z 6B209-A / BT4Z 6B209-B
Gates	T38485

You can enquire using BT4E6B209CC or a reference listed above. Include the full number, quantity and available vehicle or engine details for matching assistance.

Vehicle Application References

Use the vehicle references below to start your enquiry. Send the original OE number and available engine details if you need help identifying the required assembly.

Selected model references
Brand	Model	Reference years
Ford USA	EDGE	From 2006
Ford USA	EXPLORER	From 2010
Ford USA	FLEX	From 2008
Ford USA	TAURUS	From 2009
Mazda	CX-9	From 2006

The table lists application starting years. Include the vehicle year and engine details with your enquiry so our team can help match your requirements.

Wholesale Orders, Packaging & Warranty

Enquiries for BT4E6B209CC can be submitted individually or as part of a mixed-reference parts list. Include a quantity for each item, destination country and your preferred SUMATE, neutral or custom packaging.

Usual delivery is 1–7 days, subject to stock availability and order quantity. Contact us for MOQ and pricing. Let us know the target dispatch date and whether you would like to discuss sample evaluation before a bulk order. The quotation will confirm availability, supplied contents and the agreed schedule.

A 1-year warranty applies to this tensioner assembly. For product support, provide the order reference and a description of the issue so our team can review it.

Product Questions

Is BT4E6B209CC a complete tensioner or a pulley only?

This listing is for the complete accessory belt tensioner assembly, including the tensioning mechanism and pulley. If you need a separate pulley, let us know when enquiring.

Can I enquire using BT4Z6B209B instead of BT4E6B209CC?

Yes. Send the complete reference from your original component, available vehicle details and required quantity. Our team will check the proposed assembly, mounting arrangement and supplied contents for the quotation.

Is the mounting bolt or other hardware included?

Let us know if your order requires bolts, spacers or other mounting hardware. We will confirm the supplied contents in the quotation.

Can I combine references or discuss packaging and samples?

Send the reference list and quantities, along with packaging requirements and any sample-evaluation request. We will check the requested items and provide the proposed order details.

Request a Quote for BT4E6B209CC

Send the reference number, required quantity, destination country and packaging requirements. Include the vehicle model, year and engine code when product-matching assistance is needed.
