1420513 Ford Transit Belt Tensioner | Wholesale

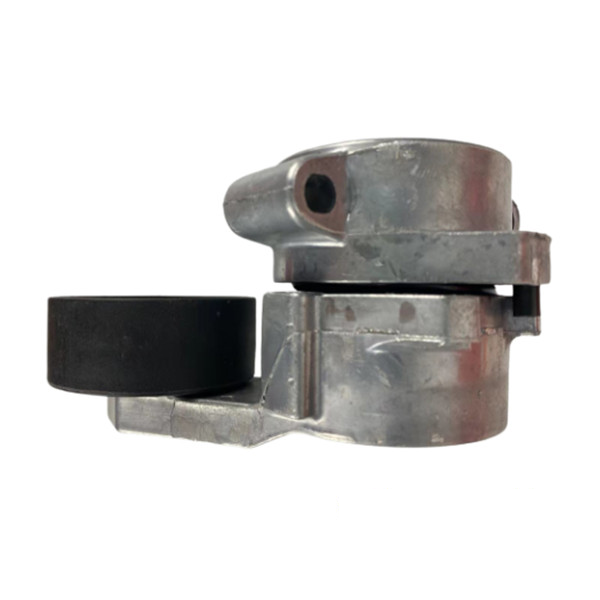

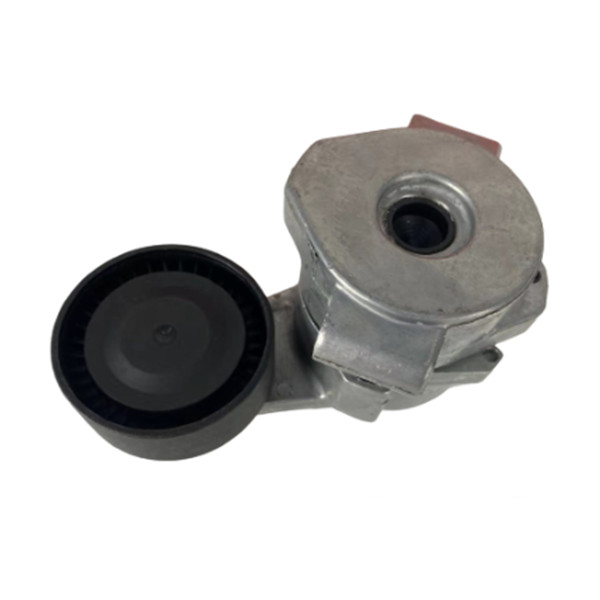

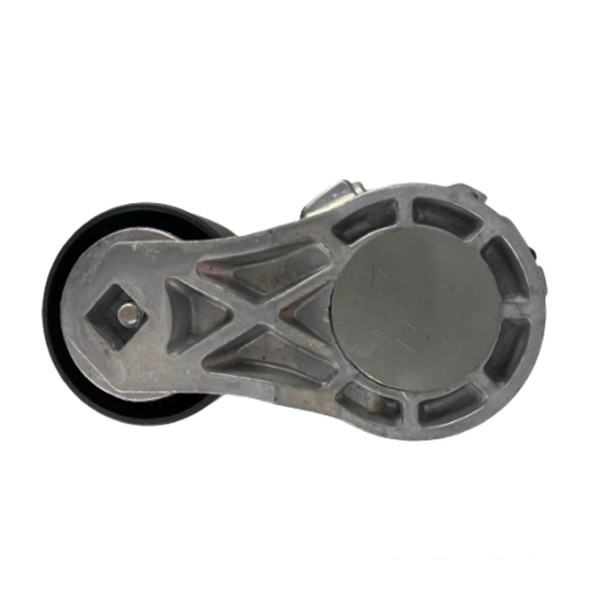

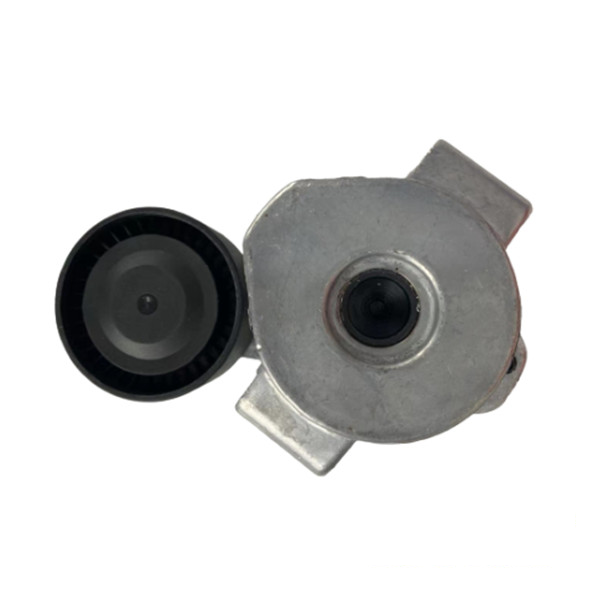

Accessory Belt Tensioner Assembly 1420513

No.1420513

SUMATE supplies accessory belt tensioner assembly 1420513 for selected Ford Transit and Tourneo applications, with additional Citroën, Fiat and Peugeot applications listed below. The complete assembly uses a C&U bearing and a steel pulley measuring 65 mm in outer diameter and 26 mm in width.

Primary OE reference: 1420513
Pulley outer diameter: 65 mm
Pulley width: 26 mm
Bearing: C&U
Pulley material: Steel
Warranty: 1 year
Delivery: 1–7 days, subject to availability and quantity
Packaging: SUMATE / Neutral / Custom
MOQ: Contact us for details
Origin: Zhejiang, China

For a quotation, send reference 1420513, quantity and packaging requirements. Include the original-part number, vehicle and engine details when matching assistance is needed.

Description

AUTOMATIC ACCESSORY-BELT TENSIONER

Accessory Belt Tensioner Assembly 1420513

SUMATE supplies accessory belt tensioner assembly 1420513 for selected Ford Transit and Tourneo applications. The pulley measures 65 mm in outer diameter and 26 mm in width. Citroën Jumper, Fiat Ducato and Peugeot Boxer application information is also included in the table below.

The complete assembly combines the tensioning mechanism, a C&U bearing and a steel pulley for the multi-V / serpentine accessory drive. The product origin is Zhejiang, China.

Technical Specifications

1420513 product specifications
SUMATE product number	1420513
Part type	Automatic accessory belt tensioner assembly
Drive system	Multi-V / serpentine accessory-belt drive
Primary OE reference	1420513
Pulley outer diameter	65 mm
Pulley width	26 mm
Bearing	C&U bearing
Pulley material	Steel
Origin	Zhejiang, China
Packaging options	SUMATE, neutral or custom packaging
Warranty	1 year
Delivery	1–7 days, subject to availability and quantity
MOQ	Contact us for details

Send the original OE number and available vehicle or engine details for matching assistance. If the marking is unreadable, photos of the original assembly and its mounting arrangement can help.

OE & Aftermarket Reference Numbers

Reference numbers for identification and comparison
Reference brand	Reference numbers
Primary OE reference	1420513
Citroën	5751.F2
Fiat	9658142780
Ford	1420513 / 6C1Q-6A228-AB
Peugeot	5751.F2
INA / Schaeffler	534 0308 10 / F-682935.02
AUTEX	654727
BREDA LORETT	CR3671 / TOA3671
CONTINENTAL CTAM	V85917
DAYCO	APV2677
FEBI BILSTEIN	37254
GATES	7808-21507 / T39107
HEPU	15-3722
HUTCHINSON	T0079
IPD	15-3722
LUCAS ELECTRICAL	LA0524
OPTIBELT	3150SR
OPTIMAL	0-N2014 / 0-N2014S
QUINTON HAZELL	QTA1577
RUVILLE	55292
SKF	VKM 34700
SNR	GA358.12
SWAG	50 93 7254
TRIPLE FIVE	03.81084 / 530443-E / 530673-E
TRISCAN	8641 163017
WILMINK GROUP	WG1253482 / WG1430415 / WG2004757

You can enquire using 1420513 or a reference listed above, including 6C1Q-6A228-AB, 9658142780 and 5751.F2. Include the full number, quantity and available vehicle or engine details for matching assistance.

Vehicle Application References

Use the Ford, Citroën, Fiat and Peugeot application references below to start your enquiry. Include the original part number and available engine details if you need help identifying the required assembly.

Selected model references
Brand	Model	Reference years
Citroën	JUMPER	From 2006
Fiat	DUCATO	2006–2011
Ford	TOURNEO	2012–2015
Ford	TRANSIT	2006–2023
Peugeot	BOXER	From 2006

For entries shown as “From”, the table provides an application starting year without an end year. Send the vehicle year and available engine details for matching assistance.

Wholesale Orders, Packaging & Warranty

Enquiries for 1420513 can be submitted individually or as part of a mixed-reference parts list. Include a quantity for each item, destination country and your preferred SUMATE, neutral or custom packaging.

Usual delivery is 1–7 days, subject to stock availability and order quantity. Contact us for MOQ and pricing. Let us know the target dispatch date and whether you would like to discuss sample evaluation before a bulk order. The quotation will confirm availability, supplied contents and the agreed schedule.

A 1-year warranty applies to this tensioner assembly. For product support, provide the order reference and a description of the issue so our team can review it.

Product Questions

Is 1420513 a complete tensioner or a pulley only?

This listing is for the complete accessory belt tensioner assembly, including the tensioning mechanism and pulley. If you need a separate pulley, let us know when enquiring.

Can I enquire about 1420513 for a Transit or Tourneo?

Yes. Send your original OE number, vehicle model, year and available engine details. Our team can help match the required assembly and prepare a quotation for your quantity.

Is the mounting bolt or other hardware included?

Let us know if your order requires bolts, spacers or other mounting hardware. We will confirm the supplied contents in the quotation.

Can I combine references or discuss packaging and samples?

Send the reference list and quantities, along with packaging requirements and any sample-evaluation request. We will check the requested items and provide the proposed order details.

Request a Quote for 1420513

Send the reference number, required quantity, destination country and packaging requirements. Include the vehicle model, year and engine code when product-matching assistance is needed.
