1127103 Ford Mondeo Belt Tensioner | Wholesale

Accessory Belt Tensioner Assembly 1127103

No.1127103

SUMATE supplies accessory belt tensioner assembly 1127103 for selected Ford Mondeo, Galaxy, S-MAX and Transit applications, with additional Volvo applications listed below. The complete assembly uses a C&U bearing and a six-groove steel pulley measuring 73 mm in outer diameter and 29 mm in width.

Primary OE reference: 1127103
Pulley outer diameter: 73 mm
Pulley width: 29 mm
Number of grooves: 6
Bearing: C&U
Pulley material: Steel
Warranty: 1 year
Delivery: 1–7 days, subject to availability and quantity
Packaging: SUMATE / Neutral / Custom
MOQ: Contact us for details
Origin: Zhejiang, China

For a quotation, send reference 1127103, quantity and packaging requirements. Include the original-part number, vehicle and engine details when matching assistance is needed.

Description

AUTOMATIC ACCESSORY-BELT TENSIONER

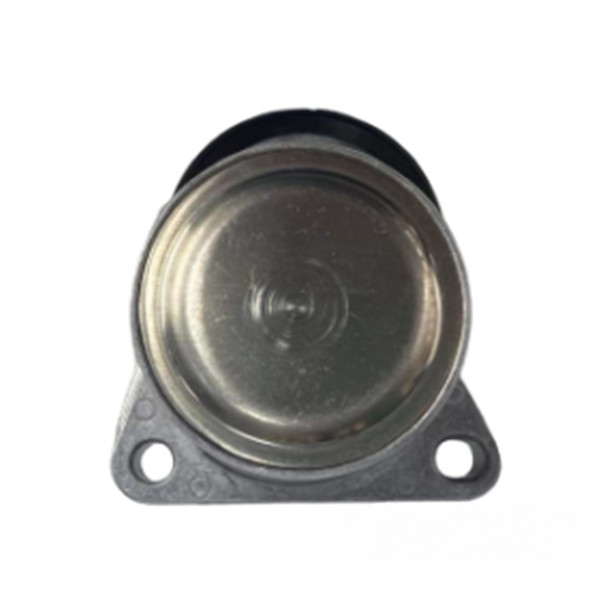

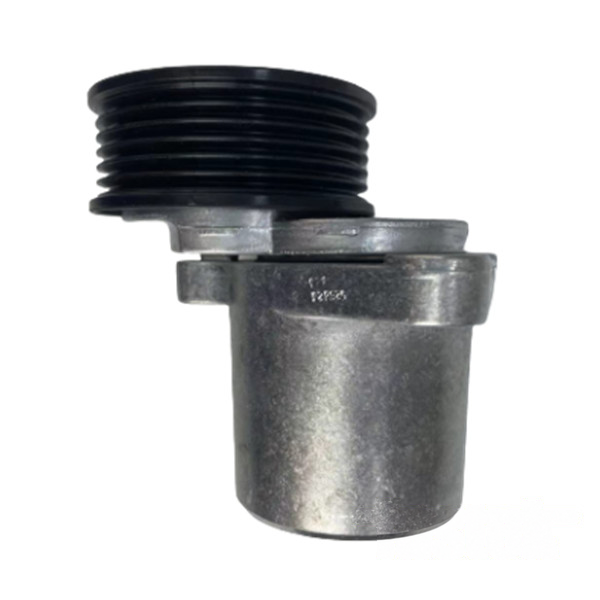

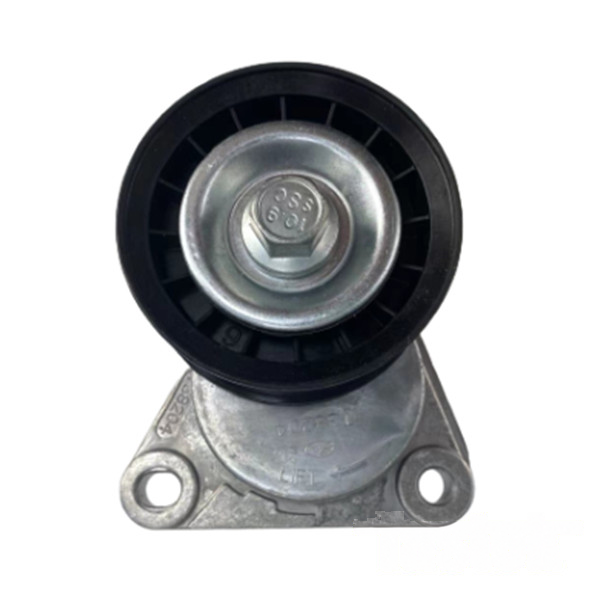

Accessory Belt Tensioner Assembly 1127103

SUMATE supplies accessory belt tensioner assembly 1127103 for selected Ford Mondeo, Galaxy, S-MAX and Transit applications. The steel pulley has six grooves, a 73 mm outer diameter and a 29 mm width. Volvo application information is also included in the table below.

The complete assembly combines the tensioning mechanism, a C&U bearing and a steel pulley for the multi-V / serpentine accessory drive. The product origin is Zhejiang, China.

Technical Specifications

1127103 product specifications
SUMATE product number	1127103
Part type	Automatic accessory belt tensioner assembly
Drive system	Multi-V / serpentine accessory-belt drive
Primary OE reference	1127103
Pulley outer diameter	73 mm
Pulley width	29 mm
Number of grooves	6
Bearing	C&U bearing
Pulley material	Steel
Origin	Zhejiang, China
Packaging options	SUMATE, neutral or custom packaging
Warranty	1 year
Delivery	1–7 days, subject to availability and quantity
MOQ	Contact us for details

Send the original OE number and available vehicle or engine details for matching assistance. If the marking is unreadable, photos of the original assembly and its mounting arrangement can help.

OE & Aftermarket Reference Numbers

Reference numbers for identification and comparison
Reference brand	Reference numbers
Primary OE reference	1127103
Ford	1127103 / 1306666 / 1371224 / 1S7Q-6A228-AC / 1S7Q-6A228-AD / 1S7Q-6A228-AE
FORD (CHANGAN)	1S7Q-6A228-AC / 1S7Q-6A228-AD / 1S7Q-6A228-AE
Volvo	30731938
INA / Schaeffler	534 0128 20 / F-125047
AUTEX	601880
BGA	DC2313
BREDA LORETT	CR3533
DAYCO	APV2311
FEBI BILSTEIN	21771
FLENNOR	FS99286
GATES	7720-43550 / 7808-21104 / 7808-71104 / T38204
GMB	GAT32380
HUTCHINSON	T0332
IPD	10-0875
LUCAS ELECTRICAL	LA0244
MAPCO	24664
OPTIMAL	0-N1497
QUINTON HAZELL	QTA1157
RUVILLE	55252
SKF	VKM34052
SNR	GA352.51
SWAG	50 92 1771
Schaeffler LuK	534012820
TRIPLE FIVE	Y1567
TRISCAN	8641 163004
VAICO	V25-0445
WILMINK GROUP	WG1253373 / WG1430284 / WG1907455

You can enquire using 1127103 or a reference listed above. Include the full number, quantity and available vehicle or engine details for matching assistance.

Vehicle Application References

Use the Ford and Volvo application references below to start your enquiry. Include the original part number and available engine details if you need help identifying the required assembly.

Selected model references
Brand	Model	Reference years
Ford	GALAXY	2006–2015
Ford	MONDEO	2000–2015
Ford	S-MAX	2006–2014
Ford	TRANSIT	2006–2014
Volvo	S80	2008–2012
Volvo	V70	2007–2011

Wholesale Orders, Packaging & Warranty

Enquiries for 1127103 can be submitted individually or as part of a mixed-reference parts list. Include a quantity for each item, destination country and your preferred SUMATE, neutral or custom packaging.

Usual delivery is 1–7 days, subject to stock availability and order quantity. Contact us for MOQ and pricing. Let us know the target dispatch date and whether you would like to discuss sample evaluation before a bulk order. The quotation will confirm availability, supplied contents and the agreed schedule.

A 1-year warranty applies to this tensioner assembly. For product support, provide the order reference and a description of the issue so our team can review it.

Product Questions

Is 1127103 a complete tensioner or a pulley only?

This listing is for the complete accessory belt tensioner assembly, including the tensioning mechanism and pulley. If you need a separate pulley, let us know when enquiring.

Does the six-groove specification apply to the 1127103 pulley?

Yes. The pulley specified for this listing has six grooves, a 73 mm outer diameter and a 29 mm width. Include the original part number with your enquiry for assistance matching the mounting arrangement.

Is the mounting bolt or other hardware included?

Let us know if your order requires bolts, spacers or other mounting hardware. We will confirm the supplied contents in the quotation.

Can I combine references or discuss packaging and samples?

Send the reference list and quantities, along with packaging requirements and any sample-evaluation request. We will check the requested items and provide the proposed order details.

Request a Quote for 1127103

Send the reference number, required quantity, destination country and packaging requirements. Include the vehicle model, year and engine code when product-matching assistance is needed.
