Name: Belt Tensioner Pulley 05281301AA for CHRYSLER MERCEDES-BENZ AUDI VW
Brand: SUMATE
SKU: 05281301AA
Price: 3.00 USD
Availability: InStock

Belt Tensioner Pulley 05281301AA for CHRYSLER MERCEDES-BENZ AUDI VW

No.05281301AA

Type	Belt Tensioner Pulley
Product Name	Belt Tensioner Pulley 05281301AA
OE Number	05281301AA
Cross Reference Numbers	K04627506AA / K04627509AA / K05184638AD / 04593848AA / 04593985AA / 04627509AA / 04627851AA / 05080246AA / 4593848AA / 4593985AA / 4627506AA / 4627509AA / 4627851AA / 4792836AA / 5080246AA / 5184638AC / 5184638AD / 5281301AA / 6507720AA / 68020888AA / 68459077AA / 12583180 / 25286-3CKA1 / 0002020019 / 0002020919 / 6512000670 / A0002020019 / A0002020919 / A6512000670 / 11927-HG00B / 6012001070 / 6612003170 / 6652003070 / 6652003170 / 6712000210 / 059903341A / 059903341E / 059903341J / 7B0903341B
Application	AUDI / CHRYSLER / DODGE / HYUNDAI / INFINITI / JEEP / KIA / MERCEDES-BENZ / VOLKSWAGEN / FIAT / NISSAN / SSANGYONG / LANCIA
Material	C&U bearing + High-strength steel pulley
MOQ	Contact Us for Details
Delivery Time	1-7 days
Packaging	SUMATE / Neutral / Custom
Origin	Zhejiang, China

$3.00

Description

Product Overview

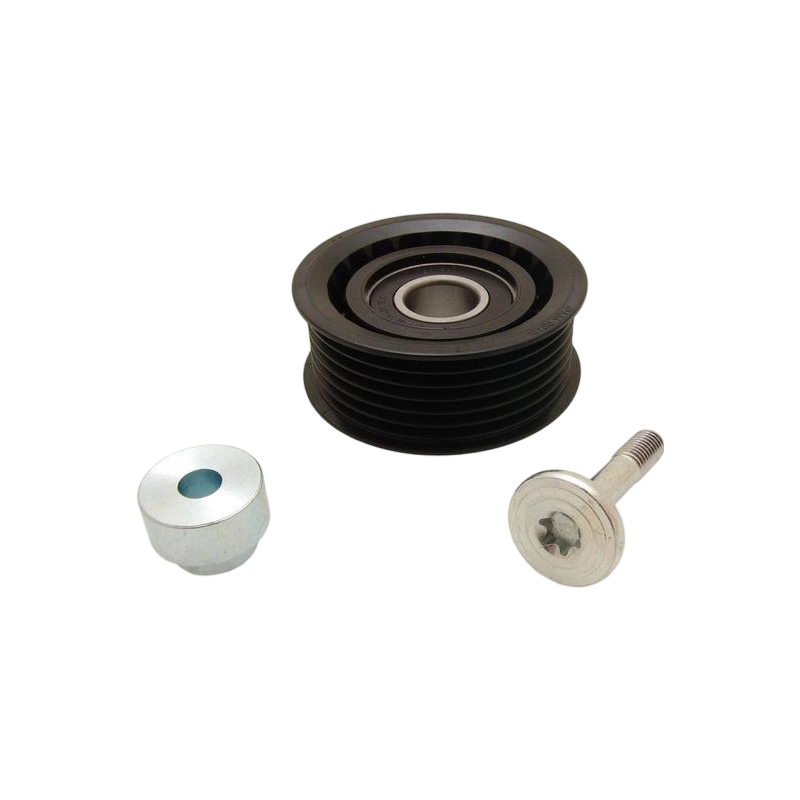

SUMATE belt tensioner pulley 05281301AA is an independent six-groove pulley for engine accessory belt systems. The product image shows the pulley supplied with an installation bolt and spacer.

The current product records associate this pulley with multiple passenger car, SUV and commercial vehicle brands. Numerous OE and aftermarket cross-reference numbers are available for comparing it with the original component.

Product Use

This pulley operates as part of the accessory belt tensioning system. Its six-groove surface engages the belt while the center bearing supports smooth pulley rotation. Correct matching of the pulley, bolt, spacer, dimensions and groove configuration is required before installation.

Key Features

Independent six-groove belt tensioner pulley
C&U center bearing
High-strength steel pulley according to the current product record
Installation bolt and spacer shown with the product
69 mm outer diameter and 17 mm inner diameter
Multiple OE and aftermarket cross-reference numbers
SUMATE, neutral and custom packaging options available

OE and Cross-Reference Numbers

Primary OE Number

05281301AA

Cross-Reference Numbers

K04627506AA / K04627509AA / K05184638AD / 04593848AA / 04593985AA / 04627509AA / 04627851AA / 05080246AA / 4593848AA / 4593985AA / 4627506AA / 4627509AA / 4627851AA / 4792836AA / 5080246AA / 5184638AC / 5184638AD / 5281301AA / 6507720AA / 68020888AA / 68459077AA / 12583180 / 25286-3CKA1 / 0002020019 / 0002020919 / 6512000670 / A0002020019 / A0002020919 / A6512000670 / 11927-HG00B / 6012001070 / 6612003170 / 6652003070 / 6652003170 / 6712000210 / 059903341A / 059903341E / 059903341J / 7B0903341B

Fitment Notice

Please verify the primary OE number, cross-reference number, pulley dimensions, number of grooves, mounting bolt and spacer before ordering. Compatibility can vary by engine, model year and accessory belt layout. The current product record does not specify engine codes.

Technical Specifications

Product Type	Belt Tensioner Pulley
Inner Diameter	17 mm
Outer Diameter	69 mm
Number of Grooves	6
Weight	0.191 kg
Material	C&U bearing + High-strength steel pulley
Included Parts Shown	Pulley / Installation bolt / Spacer
Origin	Zhejiang, China

Vehicle Fitment

The following applications are retained from the current product record. Always confirm fitment using the OE number and original pulley specifications.

Brand	Models and Years in Current Product Data
AUDI	A4 (1997-2016); A5 (2007-2017); A6 (1997-2018); A7 (2010-2018); A8 (1996-2018); Allroad (2000-2005); Q5 (2008-2017); Q7 (2006-2015)
CHRYSLER	200 (2011-2014); 300C (2004 onward); Crossfire (2003-2008); Grand (2011 onward); Pacifica (2017 onward)
DODGE	Avenger (2007-2014); Challenger (2007 onward); Charger (2005 onward); Durango (2011 onward); Journey (2008 onward); Magnum (2004-2008); RAM (2008 onward)
HYUNDAI	Genesis (2008 onward)
INFINITI	M (2010 onward); Q70 (2013 onward)
JEEP	Cherokee (2013 onward); Gladiator (2019 onward); Grand (1998 onward)
KIA	K9 (2018 onward); Stinger (2017 onward)
MERCEDES-BENZ	C-Class (1997-2014); CLC-Class (2008-2011); CLK (1997-2010); CLS (2004-2010); E-Class (1996-2014); G-Class (1997-2015); GLK-Class (2008-2015); M-Class (1998-2011); R-Class (2005-2014); S-Class (1998-2013); SL (1998-2012); SLK (2000-2011); Sprinter (2000 onward); V-Class (1999-2003); Viano (2003 onward); Vito (1999 onward)
VOLKSWAGEN	Passat (1998-2005); Phaeton (2004-2016); Touareg (2004-2018)
FIAT / NISSAN / SSANGYONG / LANCIA	These brands are assigned to the product in the current backend categories, but exact models, engines and years are not specified.

Explore more belt tensioner pulleys for Audi applications.

Wholesale and Custom Supply

SUMATE supports wholesale orders, distributor supply and custom packaging requirements. Available packaging options include SUMATE branded packaging, neutral packaging and customer-specific packaging. Contact us for MOQ, current pricing and delivery details.

Frequently Asked Questions

Is 05281301AA the primary OE number?

Yes. 05281301AA is the primary OE number for this product. All other numbers shown on this page are listed separately as cross references.

Is this a complete belt tensioner assembly?

No. The product image shows an independent six-groove tensioner pulley with a center bearing, installation bolt and spacer. A spring-loaded tensioner arm is not included.

Which Audi models are listed in the current product data?

The current record lists Audi A4, A5, A6, A7, A8, Allroad, Q5 and Q7 applications. Fitment must still be verified using the OE number, dimensions and model year.

Are the bolt and spacer included?

The current product image shows the pulley together with an installation bolt and spacer. Confirm the supplied contents when requesting a quotation.

What packaging options are available?

SUMATE branded, neutral and custom packaging options are available. Please contact us for details.

Request a Quote

Send us the required quantity, destination country and OE number 05281301AA. Our team will provide current pricing, MOQ, packaging options and delivery information.
