88-Tooth Timing Belt, 19mm | CT680 Reference

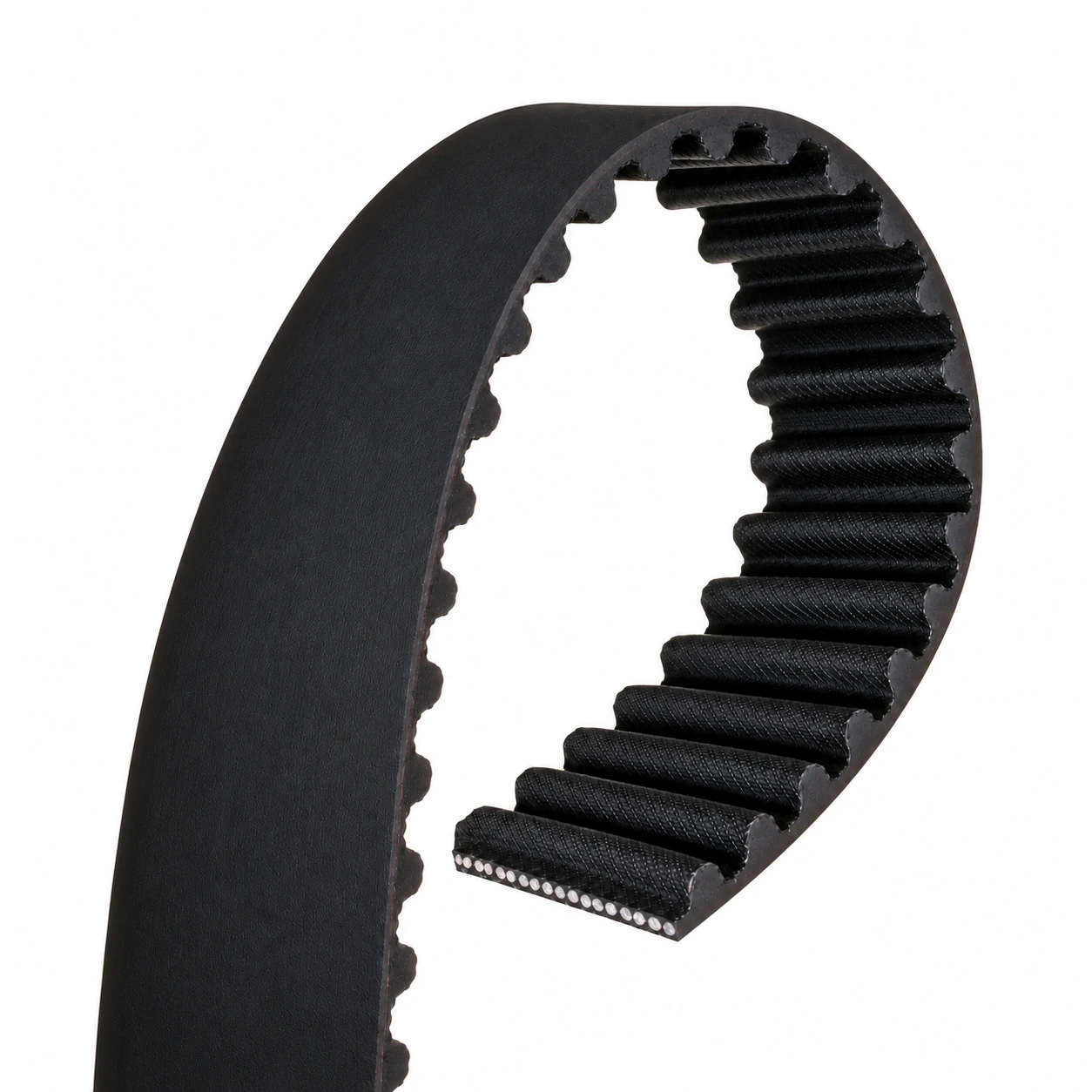

88-Tooth Automotive Timing Belt, 19 mm

No.SMT-TIM-88-19-01

88-tooth automotive timing belt with a 19 mm width for wholesale enquiries. Continental CT680 is included as a reference identifier for specification matching.

88 teeth · 19 mm width
Reference pitch: 9.525 mm · reference profile: LA
Single dry timing belt; tensioner, idler pulley and water pump are not included

Send the complete belt marking or OE number, engine details and quantity to request specification confirmation and a quotation.

Description

88-Tooth Timing Belt Specifications

SUMATE accepts enquiries for this dry automotive timing-belt specification. Use the reference below together with the original belt marking and engine information when requesting a quotation.

Specification and reference information
SUMATE enquiry number	SMT-TIM-88-19-01
Product type	Single dry automotive timing belt
Number of teeth	88
Belt width	19 mm
Reference pitch	9.525 mm
Reference tooth profile	LA — Continental catalogue designation
Calculated pitch length	838.2 mm (88 × 9.525 mm); not the measured outside circumference
Continental reference	CT680
Package contents	One timing belt; no tensioner, idler pulley or water pump

CT680 is a third-party reference number, not an OE or SUMATE part number. Matching dimensions alone do not establish interchangeability. The required tooth geometry, belt construction and engine application must be confirmed before supply.

Reference Applications for Engine Matching

The Continental catalogue lists CT680K2 for selected Changhe applications in China. Its kit diagram identifies CT680 as the timing belt. These examples help identify the requested specification; they do not establish SUMATE interchangeability or cover all engines used in the named vehicles.

Selected Chinese-market catalogue applications
Vehicle	Engine	Listed production period
Changhe Ideal 1.0	DA465Q-2 / DA465Q-2/D1, 34 kW catalogue entry	October 2003–December 2014
Changhe Furuida 1.0	DA465QE, 36 kW catalogue entry	January 2010–December 2014
Changhe Junma 1.0	DA465QE, 36 kW catalogue entry	May 2007–December 2008

The CT680 reference has 88 teeth. The CT669 and CT672 references list 84 and 90 teeth respectively, despite sharing a 19 mm reference width and a 9.525 mm reference pitch. They must not be substituted solely on these shared dimensions or vehicle brand.

Send the original belt marking or OE number, vehicle market, production year, engine code and quantity. We will check the required specification, tooth geometry and belt construction before confirming supply.

Wholesale Orders and Packaging

In-stock belts have no minimum order quantity.
For belts that are not in stock, the minimum is 15 pieces per exact belt model.
In-stock orders usually dispatch in 3–4 days. Non-stock orders usually require 7 days or more; the confirmed dispatch time depends on specification requirements and order size.
Samples are normally charged. Complimentary samples may be considered for qualified accounts; shipping costs are paid by the customer.
OEM and custom packaging enquiries are welcome. Please include your packaging requirements for confirmation.

Reference numbers shown on this page do not indicate current stock. Ask our team for pricing, availability and the confirmed lead time.

Warranty and Registration

The single-belt warranty is one year or 60,000 km, whichever comes first. A free replacement is provided after a product quality issue is confirmed.

Complete registration at support.sumaterus.com within 30 days of receipt. For registered products, the warranty starts from the recorded installation date; without registration, it starts from the receipt date. Warranty coverage is not a vehicle maintenance or timing-belt replacement interval.

Information to Include in Your Enquiry

SUMATE enquiry number SMT-TIM-88-19-01 and the full belt marking or OE reference
Quantity required for this exact specification
Vehicle model, production year and engine code
Photos of the old belt or packaging, if available
Any sample, OEM or packaging requirements

Use the product enquiry button to request a quotation. If you need other specifications, check our automotive timing belt reference table or send your list to our team.
