171-Tooth Timing Belt, 24mm | CT924 Reference

171-Tooth Automotive Timing Belt, 24 mm

No.SMT-TIM-171-24-01

171-tooth automotive timing belt with a 24 mm width for wholesale enquiries. Continental CT924 is included as a reference identifier for specification matching.

171 teeth · 24 mm width
Reference pitch: 8 mm · reference profile: STD
Single dry timing belt; tensioner, idler pulley and water pump are not included

Send the complete belt marking or OE number, engine details and quantity to request specification confirmation and a quotation.

Description

171-Tooth Timing Belt Specifications

SUMATE accepts enquiries for this dry automotive timing-belt specification. Use the reference below together with the original belt marking and engine information when requesting a quotation.

Specification and reference information
SUMATE enquiry number	SMT-TIM-171-24-01

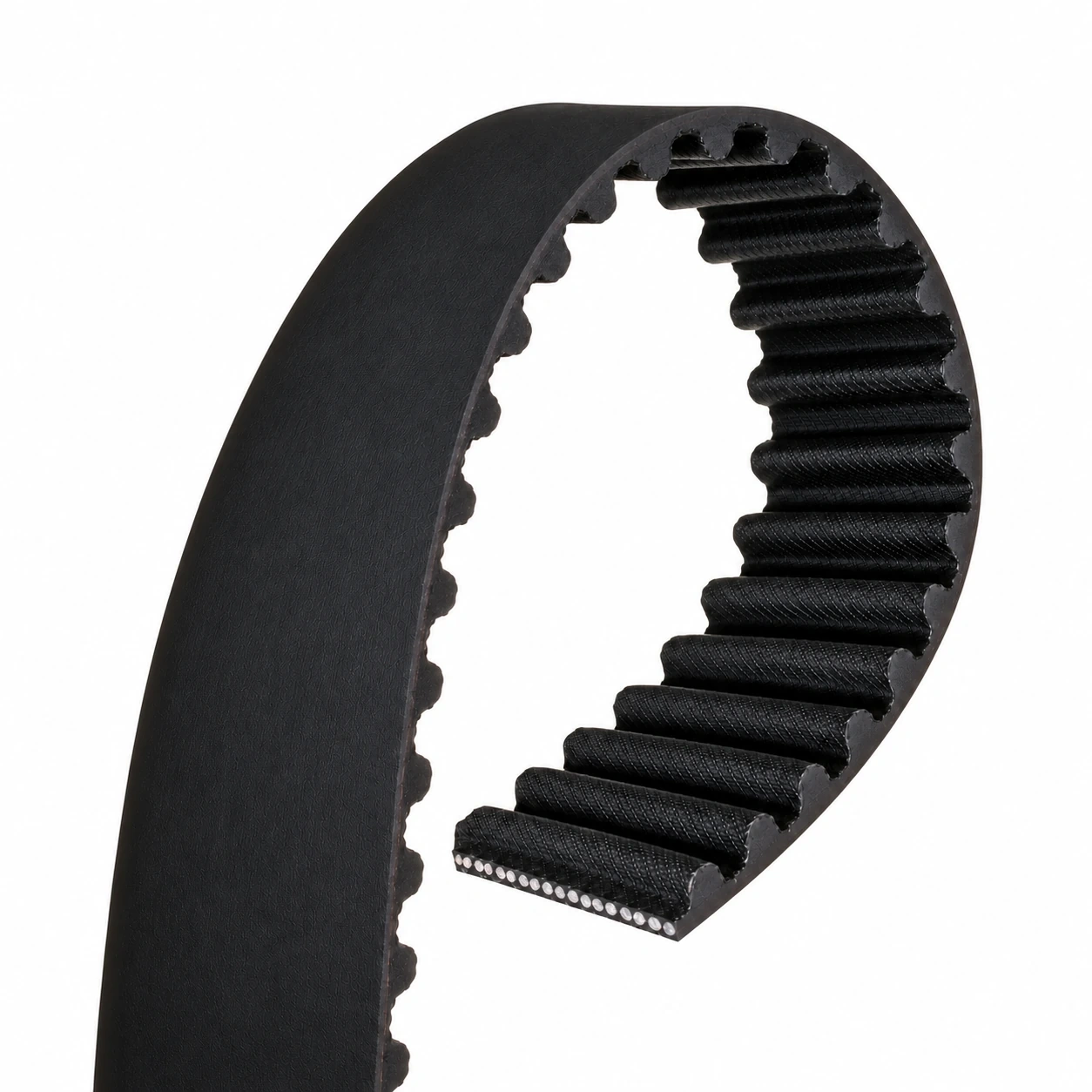

Product type	Single dry automotive timing belt
Number of teeth	171
Belt width	24 mm
Reference pitch	8 mm
Reference tooth profile	STD — Continental catalogue designation
Calculated pitch length	1368 mm (171 × 8 mm); not the measured outside circumference
Continental reference	CT924
Package contents	One timing belt; no tensioner, idler pulley or water pump

CT924 is a third-party reference number, not an OE or SUMATE part number. Matching dimensions alone do not establish interchangeability. The required tooth geometry, belt construction and engine application must be confirmed before supply.

Reference Applications for Engine Matching

The Continental catalogue lists CT924K1 for selected Buick, Chevrolet and Opel applications in China, including imported models. Its kit diagram identifies CT924 as the timing belt. These entries help identify the requested specification; they do not establish SUMATE interchangeability or cover every engine version of the named vehicles.

Selected applications from the Chinese-market catalogue
Vehicle	Engine	Listed production period
Buick Regal I 2.0	L34, 91 kW catalogue entry	February 2003–December 2008
Chevrolet Epica 2.0	L34, 95 kW catalogue entry	April 2005–September 2009
Opel Antara (L07) 2.4	Z24XE, 103 kW catalogue entry	October 2008–December 2013

The Epica catalogue distinguishes the L34 engine from T20SED: CT924 is listed for L34, while CT870 is listed for T20SED. The Antara example is limited to Z24XE and must not be extended to A24XE versions. Vehicle name and displacement alone are not sufficient for selection.

CT924K1 is a complete catalogue kit reference; this listing supplies one dry timing belt only. Send the full belt marking or OE number, vehicle market, production year, engine code and quantity so we can check the required tooth geometry and belt construction before confirming supply.

Wholesale Orders and Packaging

In-stock belts have no minimum order quantity.
For belts that are not in stock, the minimum is 15 pieces per exact belt model.
In-stock orders usually dispatch in 3–4 days. Non-stock orders usually require 7 days or more; the confirmed dispatch time depends on specification requirements and order size.
Samples are normally charged. Complimentary samples may be considered for qualified accounts; shipping costs are paid by the customer.
OEM and custom packaging enquiries are welcome. Please include your packaging requirements for confirmation.

Reference numbers shown on this page do not indicate current stock. Ask our team for pricing, availability and the confirmed lead time.

Warranty and Registration

The single-belt warranty is one year or 60,000 km, whichever comes first. A free replacement is provided after a product quality issue is confirmed.

Complete registration at support.sumaterus.com within 30 days of receipt. For registered products, the warranty starts from the recorded installation date; without registration, it starts from the receipt date. Warranty coverage is not a vehicle maintenance or timing-belt replacement interval.

Information to Include in Your Enquiry

SUMATE enquiry number SMT-TIM-171-24-01 and the full belt marking or OE reference
Quantity required for this exact specification
Vehicle model, production year and engine code
Photos of the old belt or packaging, if available
Any sample, OEM or packaging requirements

Use the product enquiry button to request a quotation. If you need other specifications, check our automotive timing belt reference table or send your list to our team.
