134-Tooth Timing Belt, 26mm | CT1065 Reference

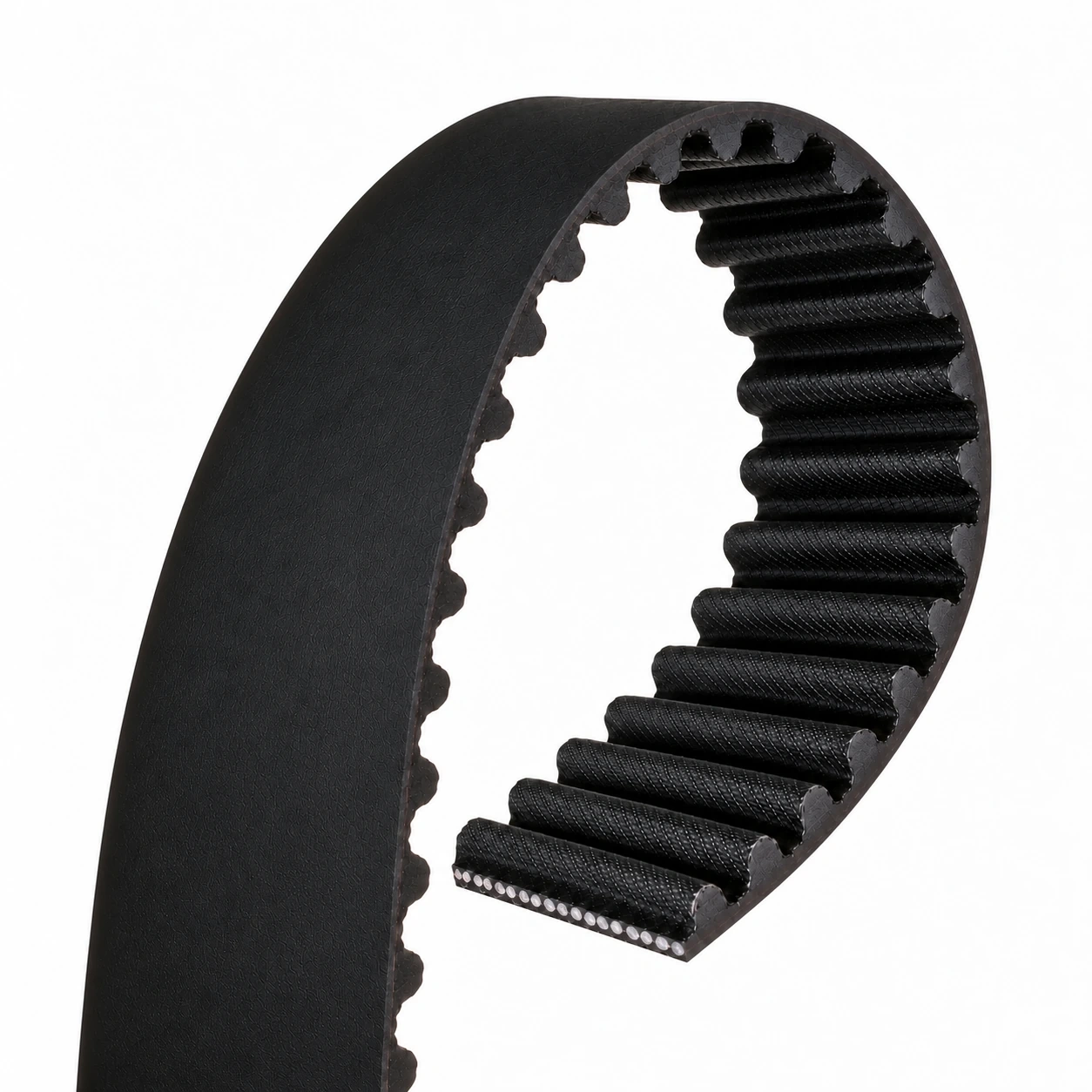

134-Tooth Automotive Timing Belt, 26 mm

No.SMT-TIM-134-26-01

134-tooth automotive timing belt with a 26 mm width, available for wholesale enquiries. Continental CT1065 is used as a reference identifier for specification matching.

134 teeth · 26 mm width
Reference pitch: 9.525 mm · reference profile: HTDA
Single timing belt; tensioners and other kit components are not included

Send the complete belt marking or OE number, engine details and quantity so we can confirm the required belt and quotation.

Description

134-Tooth Timing Belt Specifications

SUMATE accepts enquiries for this dry automotive timing-belt specification. Use the reference below together with the original belt marking and engine information when requesting a quotation.

Specification and reference information
SUMATE enquiry number	SMT-TIM-134-26-01
Product type	Single dry automotive timing belt
Number of teeth	134
Belt width	26 mm
Reference pitch	9.525 mm
Reference tooth profile	HTDA — Continental catalogue designation
Calculated pitch length	1276.35 mm (134 × 9.525 mm); not the measured outside circumference
Continental reference	CT1065
Package contents	One timing belt; no tensioner, idler pulley or water pump

CT1065 is a third-party reference number, not an OE or SUMATE part number. Matching dimensions alone do not establish interchangeability. The required tooth geometry, belt construction and engine application must be confirmed before supply.

Reference Applications for Engine Matching

The Continental catalogue links CT1065K3 to selected Dongfeng Peugeot 1.6-litre TU5JP4 applications in China. Its kit diagram identifies CT1065 as the timing belt. These entries are reference information for checking your requirement, not confirmation of SUMATE fitment.

Selected Chinese-market catalogue applications
Vehicle	Engine	Listed production period
Dongfeng Peugeot 206 1.6	TU5JP4	January 2006–February 2009
Dongfeng Peugeot 207 1.6	TU5JP4	March 2009–December 2014
Dongfeng Peugeot 307 1.6	TU5JP4	February 2008–December 2014

Model names and production periods vary by market. These selected entries do not cover every Peugeot 206, 207 or 307, and should not be applied to other engine codes without checking.

For a quotation, send the complete marking from the old belt or its OE number, vehicle market and year, engine code, and quantity. Final tooth geometry, construction and application must be confirmed before supply.

Wholesale Orders and Packaging

In-stock belts have no minimum order quantity.
For belts that are not in stock, the minimum is 15 pieces per exact belt model.
In-stock orders usually dispatch in 3–4 days. Non-stock orders usually require 7 days or more; the confirmed dispatch time depends on specification requirements and order size.
Samples are normally charged. Complimentary samples may be considered for qualified accounts; shipping costs are paid by the customer.
OEM and custom packaging enquiries are welcome. Please include your packaging requirements for confirmation.

Reference numbers shown on this page do not indicate current stock. Ask our team for pricing, availability and the confirmed lead time.

Warranty and Registration

The single-belt warranty is one year or 60,000 km, whichever comes first. A free replacement is provided after a product quality issue is confirmed.

Complete registration at support.sumaterus.com within 30 days of receipt. For registered products, the warranty starts from the recorded installation date; without registration, it starts from the receipt date. Warranty coverage is not a vehicle maintenance or timing-belt replacement interval.

Information to Include in Your Enquiry

SUMATE enquiry number SMT-TIM-134-26-01 and the full belt marking or OE reference
Quantity required for this exact specification
Vehicle model, production year and engine code
Photos of the old belt or packaging, if available
Any sample, OEM or packaging requirements

Use the product enquiry button to request a quotation. If you need other specifications, check our automotive timing belt reference table or send your list to our team.
