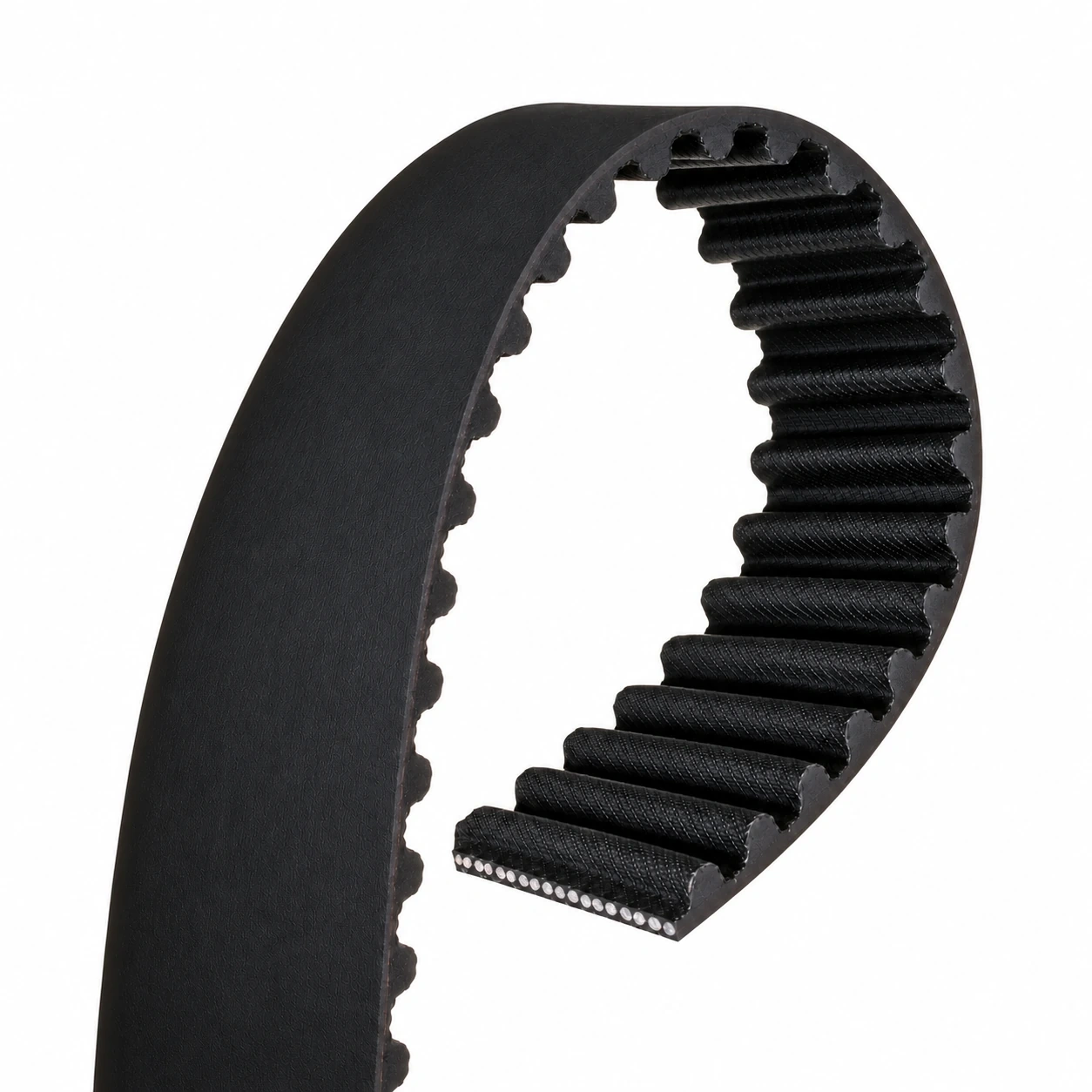

109-Tooth Timing Belt, 25mm | CT1008 Reference

109-Tooth Automotive Timing Belt, 25 mm

No.SMT-TIM-109-25-01

109-tooth automotive timing belt with a 25 mm width for wholesale enquiries. Continental CT1008 is included as a reference identifier for specification matching.

109 teeth · 25 mm width
Reference pitch: 8 mm · reference profile: HTDA
Single dry timing belt; tensioner, idler pulley and water pump are not included

Send the complete belt marking or OE number, engine details and quantity to request specification confirmation and a quotation.

Description

109-Tooth Timing Belt Specifications

SUMATE accepts enquiries for this dry automotive timing-belt specification. Use the reference below together with the original belt marking and engine information when requesting a quotation.

Specification and reference information
SUMATE enquiry number	SMT-TIM-109-25-01
Product type	Single dry automotive timing belt
Number of teeth	109
Belt width	25 mm
Reference pitch	8 mm
Reference tooth profile	HTDA — Continental catalogue designation
Calculated pitch length	872 mm (109 × 8 mm); not the measured outside circumference
Continental reference	CT1008
Package contents	One timing belt; no tensioner, idler pulley or water pump

CT1008 is a third-party reference number, not an OE or SUMATE part number. Matching dimensions alone do not establish interchangeability. The required tooth geometry, belt construction and engine application must be confirmed before supply.

Reference Applications for Engine Matching

The Continental catalogue lists CT1008K1 for selected BYD and Haima applications in China. Its kit diagram identifies CT1008 as the timing belt. These catalogue entries help identify the requested specification; they do not establish SUMATE interchangeability or cover all engines used in the named vehicles.

Selected Chinese-market catalogue applications
Vehicle	Engine	Listed production period
BYD F3 1.5	4G15S, 78 kW catalogue entry	September 2007–December 2012
BYD F3 1.6	DA4G18, 74 kW catalogue entry	September 2005–December 2013
Haima Haifuxing 1.6	DA4G18, 74 kW catalogue entry	January 2006–December 2010

Engine identification matters: the same vehicle model can have different engines and belt requirements. These examples must not be applied to other engine versions or markets without checking.

Send the original belt marking or OE number, vehicle market, production year, engine code and quantity. We will check the required specification, tooth geometry and belt construction before confirming supply.

Wholesale Orders and Packaging

In-stock belts have no minimum order quantity.
For belts that are not in stock, the minimum is 15 pieces per exact belt model.
In-stock orders usually dispatch in 3–4 days. Non-stock orders usually require 7 days or more; the confirmed dispatch time depends on specification requirements and order size.
Samples are normally charged. Complimentary samples may be considered for qualified accounts; shipping costs are paid by the customer.
OEM and custom packaging enquiries are welcome. Please include your packaging requirements for confirmation.

Reference numbers shown on this page do not indicate current stock. Ask our team for pricing, availability and the confirmed lead time.

Warranty and Registration

The single-belt warranty is one year or 60,000 km, whichever comes first. A free replacement is provided after a product quality issue is confirmed.

Complete registration at support.sumaterus.com within 30 days of receipt. For registered products, the warranty starts from the recorded installation date; without registration, it starts from the receipt date. Warranty coverage is not a vehicle maintenance or timing-belt replacement interval.

Information to Include in Your Enquiry

SUMATE enquiry number SMT-TIM-109-25-01 and the full belt marking or OE reference
Quantity required for this exact specification
Vehicle model, production year and engine code
Photos of the old belt or packaging, if available
Any sample, OEM or packaging requirements

Use the product enquiry button to request a quotation. If you need other specifications, check our automotive timing belt reference table or send your list to our team.
