7DPK Double-Sided Automotive Multi-V Belts

No.SMT-7DPK-SERIES

SUMATE supplies 7DPK double-sided automotive multi-V belts for accessory-drive systems requiring ribbed contact on both belt faces. Check the seven-rib reference markings below and send the exact size and quantity for a wholesale quotation.

Design: Seven-rib, double-sided multi-V belt
Identification: DPK and PKK reference markings
Orders: Specify quantity for each exact model
Other sizes: Available to order

Keep the complete original marking when enquiring. Similar length numbers do not confirm interchangeability, and listed references do not indicate current stock.

Description

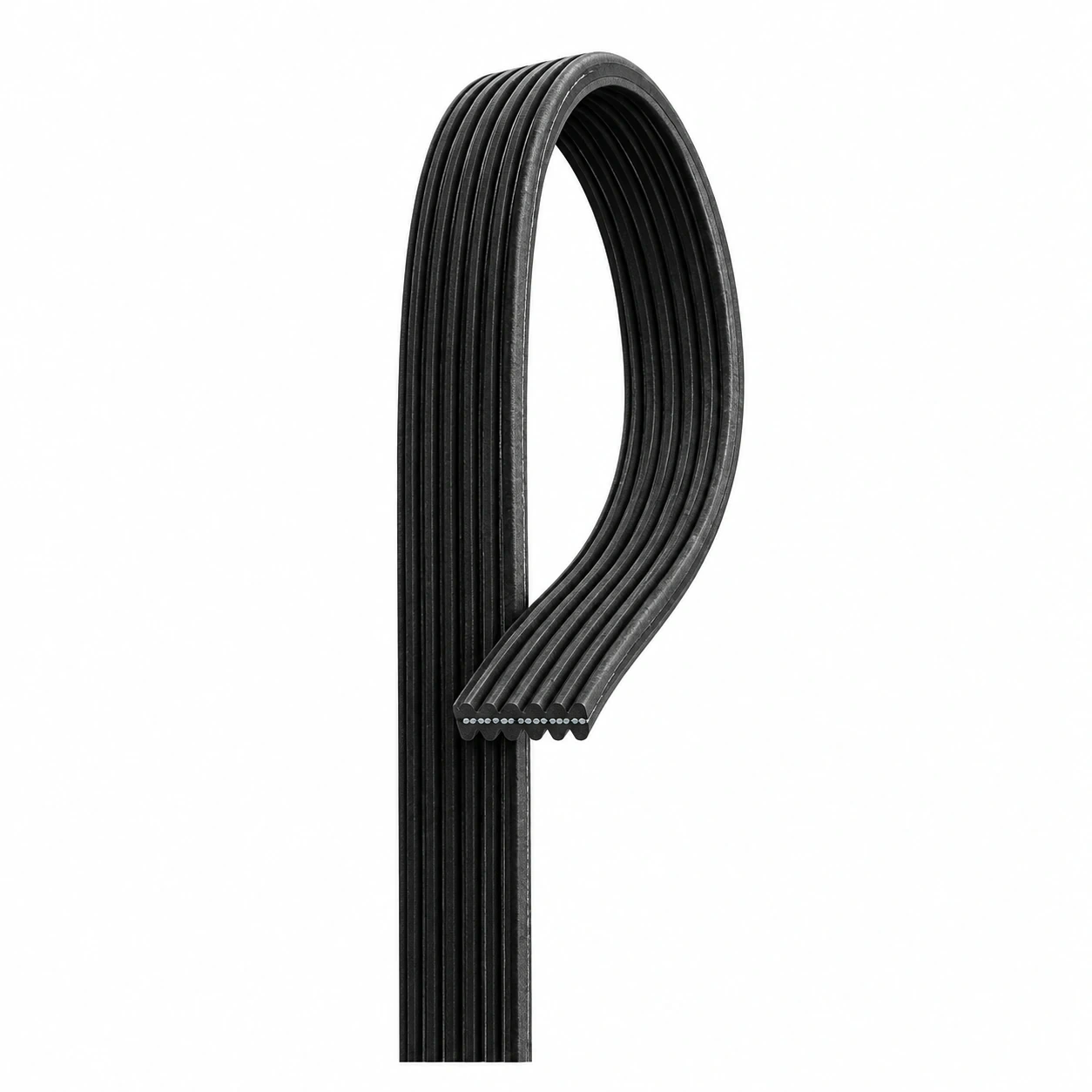

7DPK DOUBLE-SIDED MULTI-V BELTS

Seven-Rib Belts for Double-Sided Automotive Drives

SUMATE supplies 7DPK double-sided automotive multi-V belts for accessory drives that use grooved pulleys on both sides of the belt. The seven-rib designation identifies the belt series; the full marking and drive specification determine the size required.

Trade buyers can use the reference tables below to prepare a size-by-size enquiry. Include the original belt marking, vehicle and engine details, and the quantity for each model so we can check the specification and quote the order.

7Rib-count designation

DPKDouble-PK profile

Both facesLongitudinal ribbed surfaces

Trade supplySize matching and quotations

7DPK Belt Reference Codes

The following designations are listed in automotive belt reference catalogues. The length-code column reproduces the numeric part of each designation. It is not an independent measurement of effective length or outside circumference, and it must not be used as a manufacturing tolerance.

Published 7DPK designations and their length codes
Reference designation	Length code (mm)
7DPK1360	1360
7DPK1400	1400
7DPK1558	1558
7DPK1697	1697
7DPK1884	1884
7DPK2074	2074
7DPK2569	2569
7DPK2880	2880
7DPK2950	2950

Ordering by reference: Retain the full prefix, length number and any suffix. References such as 7DPK2569 and 7PKK2570 are shown as originally published. Do not treat them as interchangeable solely because their length numbers are close.

Seven-Rib PKK Markings and Effective Lengths

Some catalogues identify double-sided multi-V belts using PKK markings. The table below retains those original designations and their published effective lengths. The references may overlap with the DPK list above; the two tables are not a count of different interchangeable products.

Published seven-rib PKK references — effective length, not outside circumference
Reference marking	Effective length (in)	Approx. effective length (mm)
7PKK1360	53.54	1360
7PKK1400	55.12	1400
7PKK2000	78.74	2000
7PKK2074	81.65	2074
7PKK2570	101.18	2570
7PKK2880	113.39	2880
7PKK2950	116.14	2950

Measurement basis: Millimetre values are converted from the published effective lengths in inches and rounded to the nearest millimetre. Keep the original marking when requesting a quote. These reference values are not SUMATE production tolerances or stock records.

Other sizes are available to order. The references shown here do not limit our production range. Send the complete marking, required dimensions or OE reference and the quantity for each model. We will confirm the specification and order details in the quotation.

Match the Belt to the Drive

A double-sided belt is used where the pulley arrangement requires ribbed contact on both belt faces. A single-sided 7PK belt is not a substitute merely because its rib count and length are similar.

Check the rib configuration on both sides, overall width, length basis and the original belt reference. Vehicle make alone is not enough to establish fitment.

What to Include in Your Enquiry

Complete belt marking and any suffix
OE or other part reference, if available
Vehicle model, year and engine code
Quantity required for each exact size
Destination country and packaging requirements

If the marking is unreadable, send clear photos of both ribbed faces and any available dimensions.

Trade Orders, Samples and Packaging

In-stock belts have no minimum order quantity. Non-stock belts have a minimum order quantity of 15 pieces per exact belt model. In-stock orders generally dispatch within 3–4 days; non-stock orders generally require at least 7 days. Actual dispatch timing depends on the specification, availability and total order quantity and is confirmed with our sales team.

OEM orders and custom packaging are available. Include your marking, artwork and packaging requirements with the enquiry. Samples are normally charged; free samples may be offered to selected qualified business customers after review. Sample shipping costs are paid by the customer.

Belt Warranty

Individual belts carry a warranty of 1 year or 60,000 km, whichever comes first. A confirmed product quality issue qualifies for a free replacement.

Register within 30 days of receipt at our warranty registration website. For registered products, coverage starts from the recorded installation date; otherwise, it starts from the date of receipt. The warranty period is not a belt replacement interval.

Request a 7DPK Belt Quotation

Send the complete belt marking and quantity for each size. Include any OE reference and engine details so our team can check the specification and provide pricing and a dispatch schedule.

For other rib-count series, visit our double-sided automotive multi-V belt range.
