How the Car’s Air Conditioning (A/C) System Works: Most Common Problems and Solutions

Why Your Car’s A/C Matters: A Quick Overview

Imagine this: it's a hot summer day, and you're driving along, expecting the cool, refreshing air from your car's air conditioning system. But instead, you're blasted with warm air that makes the inside of your car feel like a sauna. That’s when you realize—your A/C has failed.

This situation is more than just a minor inconvenience. In extreme heat, a malfunctioning A/C system can pose a safety risk, especially if you're driving for long periods. High temperatures can lead to dehydration, heat stroke, or distracted driving. That’s why it's essential to keep your A/C in top shape by understanding how it works, recognizing the common problems, and knowing how to address them.

In this guide, we’ll explain how your car’s A/C system operates, walk you through the most frequent A/C issues, and offer simple, actionable solutions. Maintaining your A/C system with high-quality components like SUMATE’s air conditioning parts can make a big difference in keeping things running smoothly.

How the Car’s A/C System Works: A Simple Breakdown

The air conditioning system in your car is essentially a “heat mover.” It moves heat from inside the vehicle and releases it outside by manipulating refrigerant—a fluid that changes between liquid and gas states. This process allows the A/C to cool and dehumidify the air in your car.

Key Components and What They Do

• Compressor: The “heart” of the system. It’s powered by a belt connected to the engine, and it compresses refrigerant from a low-pressure gas into a high-pressure, high-temperature gas.

• Condenser: Located at the front of your car, it cools the high-pressure gas and converts it into a liquid.

• Receiver/Dryer: This component removes moisture from the refrigerant, preventing water from causing damage to the system.

• Expansion Valve/Orifice Tube: It reduces the pressure of the refrigerant, turning it into a cold mist.

• Evaporator: Found behind the dashboard, this is where the cold refrigerant absorbs heat from the air inside your car, making the air cool and dry before it’s blown into the cabin.

Refrigerant Evolution: From R-12 to R-134a to R-1234yf

In the past, R-12 (Freon) was the standard refrigerant, but due to environmental concerns, it has been replaced with R-134a and, more recently, the environmentally-friendly R-1234yf. This shift has reduced the environmental impact of car air conditioning systems.

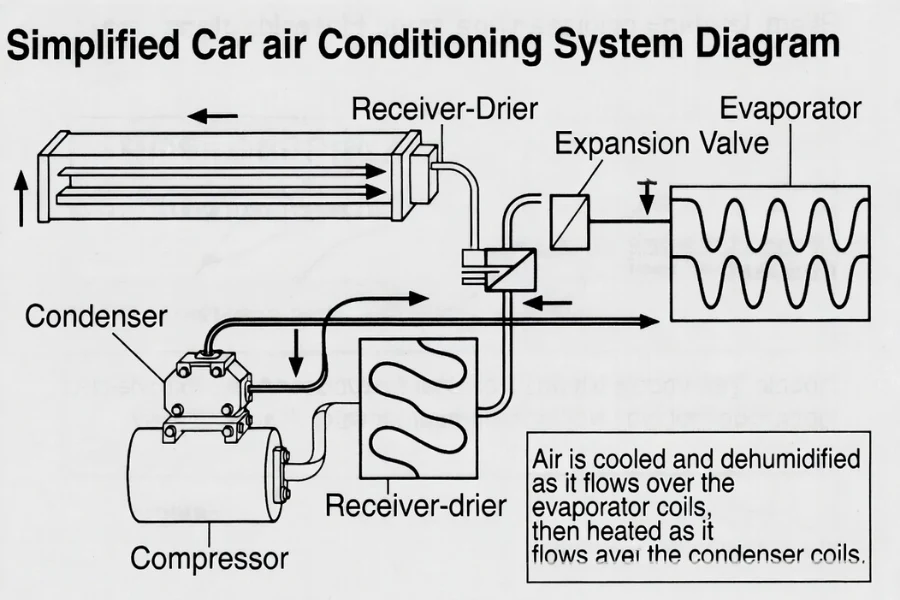

Visual Aid: A diagram showing the refrigerant flow and component locations can make this process clearer to readers.

What to Do First When Your A/C Isn’t Cooling?

When your A/C isn’t working as it should, it’s important to start with some basic checks. Here’s a quick diagnostic checklist:

1. Check the Cooling Fans: Ensure the fan on the condenser is working properly.

2. Inspect the Condenser: Look for leaves, dirt, or debris that may be blocking airflow.

3. Examine the Cabin Air Filter: A clogged filter can restrict airflow, causing your A/C to underperform.

4. Test the Air Temperature: Set the A/C to maximum cool and maximum fan speed to check if the air temperature drops.

Professional Tools

For more accurate diagnostics, a manifold gauge set is used to measure the pressure on the high and low sides of the A/C system. This is an essential step in identifying whether the system needs refrigerant or if there’s a deeper issue.

If you’re looking for high-quality components to keep your A/C system working efficiently, SUMATE provides durable and reliable air conditioning parts that can help extend the life of your system.

8 Common A/C Problems, Their Causes, and How to Fix Them

Problem 1: Air Coming Out Isn’t Cold

• Cause: Low refrigerant levels or refrigerant leaks (most common due to worn seals, hoses, or a damaged compressor).

• Solution: Check the refrigerant level and refill it if necessary. Use UV dye to detect leaks and repair them. If a leak is found, get professional help to fix it.

Problem 2: No Air or Very Low Airflow

• Cause: Electrical issues, damaged blower motor, or clogged air intake.

• Solution: Replace blown fuses and relays. If the blower motor is damaged, it will need to be replaced. Clean or replace the cabin air filter, and ensure the air intake is clear.

Problem 3: A/C Blows Foul Odors

• Cause: Mold, bacteria, or fungi buildup in the evaporator.

• Solution: Replace the cabin air filter regularly (every 1-2 years). Clean the evaporator with an antibacterial solution to remove any mold and bacteria.

Problem 4: Water on the Floor

• Cause: A clogged A/C drain line due to dirt and bacteria buildup.

• Solution: Use a metal wire or air pressure to clear the drain line. Ensure the cabin air filter is clean to prevent debris buildup in the system.

Problem 5: Strange Noises from Your A/C

• Cause: Worn components such as the compressor bearings, or foreign objects in the blower motor.

• Solution: Inspect and replace any worn-out parts. Clean the blower motor and remove any debris.

Problem 6: A/C Going from Cold to Hot

• Cause: Moisture or air in the system, causing ice buildup in the expansion valve.

• Solution: Perform a vacuum evacuation to remove moisture and air. Recharge the system with the correct refrigerant.

Problem 7: Compressor Not Engaging

• Cause: Pressure issues or faulty electrical components (e.g., blown fuses, pressure switch).

• Solution: Check the system’s pressure. Inspect the clutch for power and replace faulty electrical components as needed.

Problem 8: Abnormal System Pressure

• Cause: High pressure due to a blocked condenser or excess refrigerant; low pressure due to insufficient refrigerant or blockages.

• Solution: Clean the condenser, check for leaks, and recharge the system with the correct refrigerant.

How to Keep Your A/C Running Smoothly: Pro Tips for Maintenance

Preventive care is the best way to avoid costly repairs and ensure your A/C works efficiently when you need it the most. Here are some tips:

• Run the A/C Regularly: Even in winter, run your A/C once a month for 10-15 minutes to keep the seals lubricated and prevent damage.

• Change Your Cabin Air Filter: A clean filter ensures better airflow and better air quality.

• Check Belts and Hoses: Regularly inspect the compressor belt and A/C hoses for any signs of wear or leaks.

• Schedule Professional Maintenance: Have your system checked every 2-3 years, or sooner if you notice a decrease in cooling performance.

FAQ

Why does my car’s A/C need refrigerant?
Refrigerant is essential because it absorbs and releases heat as it changes between liquid and gas, cooling the air inside the car. Without it, the A/C can’t function properly.

Can I add refrigerant to my A/C myself?
You can use a DIY kit temporarily, but if the system has leaks, adding refrigerant repeatedly can damage the compressor. Fixing the leak first is crucial to avoid costly repairs.

What is the most common cause of car A/C failure?
The most common cause is low refrigerant levels, often due to leaks in the system. Leaks can occur in hoses, seals, or components like the compressor or evaporator.

How do I figure out what's wrong with my car’s A/C?
Start with basic checks, like refrigerant levels and airflow. If these are fine, use a pressure gauge or have a professional check for leaks or component failures.

What’s the worst-case scenario if my A/C stops cooling?
If your A/C stops cooling, the compressor may be damaged. This can be expensive to repair or replace, but regular maintenance can help prevent this costly issue.

Conclusion

Your car’s A/C system is a complex and essential part of your vehicle. By understanding how it works and staying on top of regular maintenance, you can ensure your A/C keeps running smoothly. Regular checks and quick fixes can prevent costly repairs and help you stay cool during the hottest months.
